Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
Datasheet | v1.4 |
Feb 07, 2023 |
|
|
Manual | v1.1 |
Jan 18, 2023 |

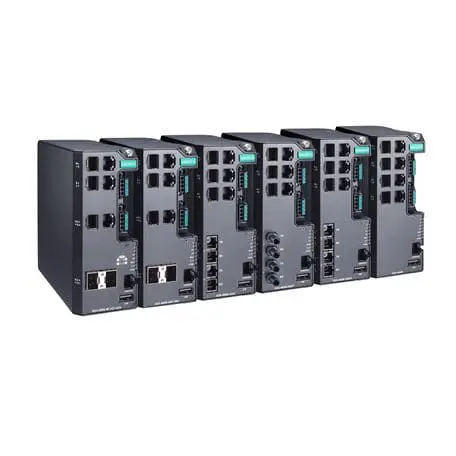

The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af(PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4008 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with ST connectors, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
Managed Ethernet switch with 6 10/100BaseT(X) ports, 2 100BaseFX multi-mode ports with SC connectors, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature
Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature
Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature
Managed Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 2 10/100/1000BaseT(X), 2 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
