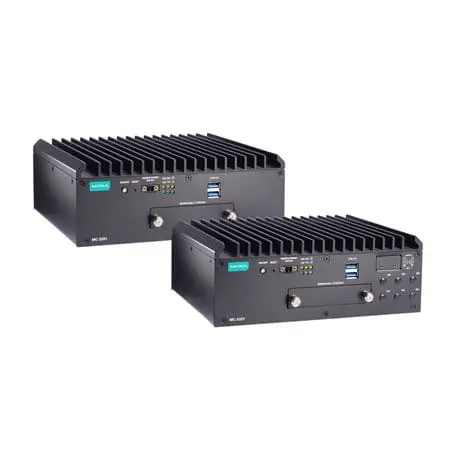

MC-3201 Series

Introduction

The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.

Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion modules.

Compliance with the IEC-60945 and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.

Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility available with some Moxa computers to track a number of system parameters. You can view the current values for  key parts by simply clicking on the icons corresponding to the parameters in a Windows-based user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relays and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance. The Proactive Monitoring tool is currently available with DA-720 Series, DA-820C Series, MC-1200 Series, MC-3201 Series, and MC-7400 Series.

Appearance

MC-3201-TGL1-S-S Front Panel

MC-3201-TGL1-S-S Rear Panel

MC-3201-TGL7-M-S Front Panel

MC-3201-TGL7-M-S Rear Panel
