Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
QIG | v2.1 |
Jun 07, 2021 |
|
|
Datasheet | v1.4 |
Mar 19, 2020 |
|
|
Manual | v1.0 |
Mar 21, 2017 |
|
|
Manual | v2.0 |
Mar 21, 2017 |

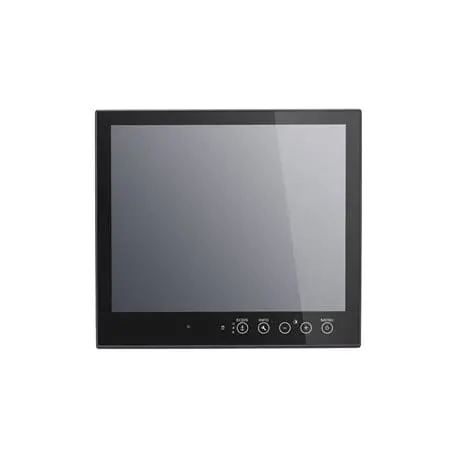

MPC-2190 panel computers feature an Intel® 3rd generation processor matched to 4 GB of system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its two RS-232/422/485 serial ports, four NMEA 0183 ports, and two Gigabit Ethernet ports, the MPC-2190 panel computer supports a wide variety of serial and marine-specific interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2190 Series comes with a range of standard display enhancements useful in industrial environments (including full range dimming, wide viewing angles, and optional optical bonding), as well as a few innovations especially deployed for maritime environments: user-friendly OSD controls, called SavvyTouch, featuring a proximity sensor for convenient adjustment in dark situations, immediate BIOS-level reports on hardware status (useful for determining why a machine will not boot up), and a quick-switch ECDIS button (for color-calibrated ECDIS models only) that allows instant brightness adjustments to any of the three pre-set calibrations dictated by the ECDIS standard. In addition to all of this, the MPC-2190 Series features a modular design that makes device integration into either new or existing industrial systems much simpler, reducing deployment costs and overall time-to-market.
The MPC-2190 panel computers are compliant with several industrial marine standards, including IEC 60945, IEC 61162, IEC 61174, DNV, and IACS E10, verifying their resilience for maritime operations. The IP54 (front panel) and IP22 (rear panel) rated unibody shell provides strong additional protection against the harsh conditions found in marine environments.
Color-calibrated ECDIS models are available upon request, providing an ideal HMI alternative for ECDIS charting and navigation stations.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Moxa is a leading provider of edge connectivity, industrial computing, and network infrastructure solutions for enabling connectivity for the Industrial Internet of Things (IIoT). With over 35 years of experience, they help industrial enterprises overcome roadblocks and achieve operational resilience through purpose-built OT networking and cybersecurity. They are dedicated to changing the world through the power of connectivity, driving industrial transformation.
Acksys’s expertise and high-quality standards enable their products to meet the most demanding requirements of our key markets: transport (rail, road), industry (M2M, IIoT, automation), mining, oil & gas and port areas. They specialise in WiFi and Cellular Communication Solutions, which have been designed for the industry for over 40 years.
ATOP aims to facilitate connections that drive the world in which we live. In industrial environments, having the right connections is vital: connections between the network, devices, and machines, connections with industry experts and trusted partners.
The Tofino™ Security product line is part of the Belden portfolio of leading industrial networking solutions. Tofino Security offers enhanced cybersecurity for critical industrial automation systems through a simple-to-implement solution.
Phoenix Contact Connect distributes and controls power and data flows – they have been developing the right products for this purpose since 1923. Whether in industrial production facilities, in the field of renewable energies, in infrastructure, or for complex device connections, their solutions are used wherever processes must run automatically. Above and beyond their pure function, they help our partners develop sustainable applications with more efficient processes and reduced costs.
Phoenix Contact: We are paving the way to a climate-neutral and sustainable world with innovative products and solutions.
| Name | Type | Version | Operating System | Release Date | |
|---|---|---|---|---|---|
|
|
Driver |
295C5E4A9601DEDB66B706E29D544799F5E415B0E212DB9068E8ACFDC532F60191A10A2D8BA0D1882FA8192689E132645A6367824A02BFEA957ACF4872C78953 SHA-512 |
v1.0 |
|
Nov 05, 2019 Release notes |
|
|
Driver |
FA4A83AF3314101C3CECC3D1C7D2CCE8CCDD22D6A16FBA8B038BEAD7F70D06CE5DAAE6038B90799B87BE6B48A44D2536901F31210FAE9383D03A39AD96A08BCE SHA-512 |
v1.0 |
|
Mar 20, 2017 |
|
|
Utility |
BA6716069AF37D7CA69F732CAA0EA167F94E4EA405BDAC08E3574DD9A267F1B9AE0DD78B404692867DFB5BA442A14C1D81FED67148C014F7A90467634BFCF00B SHA-512 |
v1.0 |
|
Mar 20, 2017 |
|
|
Software Package |
9D569B75E02C272F251E04E901D5413EA3B33BD97875516590D0F1EBCB2C3D797C7B5CA8DD8E41B75F590D8B3280AF0742BE22DA47E3083A929CC29B42B3AB66 SHA-512 |
v1.0 |
|
Mar 20, 2017 |
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
QIG | v2.1 |
Jun 07, 2021 |
|
|
Datasheet | v1.4 |
Mar 19, 2020 |
|
|
Manual | v1.0 |
Mar 21, 2017 |
|
|
Manual | v2.0 |
Mar 21, 2017 |
