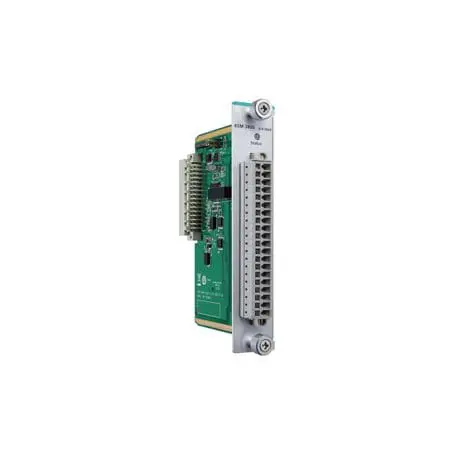

4 AOs, 0 to 10 V, -10 to 10 V, 0 to 20 mA, or 4 to 20 mA, -40 to 75°C
Available on back-order
Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

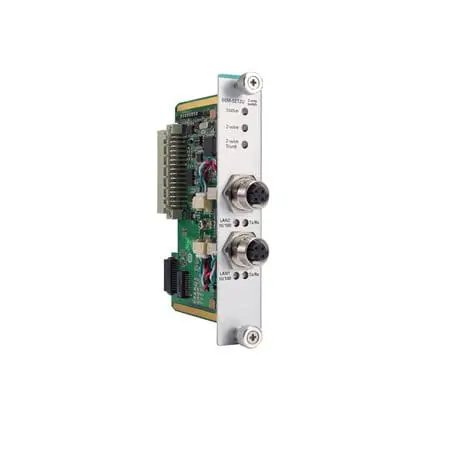

2 Ports 2-wire Ethernet Switch, -40 to 75°C
8 DOs, sink, 24 VDC, ch-to-ch isolation, channel LED, -40 to 75°C
8 DOs, source, 24-110 VDC, channel LED, -40 to 75°C
6 relays, form A (N.O.), channel LED, -40 to 75°C
8 DIs, sink/source, 24 VDC, ch-to-ch isolation, channel LED, -40 to 75°C
16 DIs, sink/source, 24-110 VDC, channel LED, -40 to 75°C

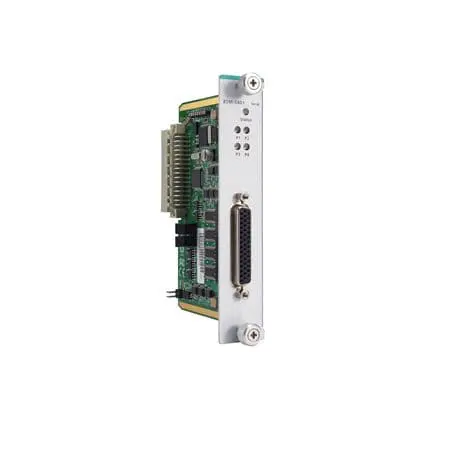

4 serial ports (RS-232/422/485 3-in-1), -40 to 75°C
| Analog Output Channels | |
|---|---|
| Connector | |
| I/O Mode | |
| Dimensions | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | |
| EMC | |
| EMI | |
| Railway | |
| Safety | |
| Shock | |
| Vibration | |
| Time | |
| Standards | |
| Warranty Period | |
| Details | |
| Power Consumption | |
| Weight | |
| Wiring |
