10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna
Available on back-order

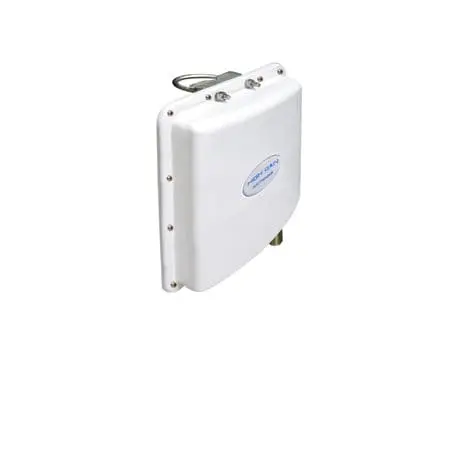

The ANT-WDB-PNF-1011 is a dual-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 10 dBi at 2.4 GHz and 11 dBi at 5 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.
X-Y Plane
X-Z Plane
Y-Z Plane
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
| Frequency | |
|---|---|
| IP Rating | |
| Dimensions | |
| Weight | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Warranty Period | |
| Polarization | |
| Antenna Type | |
| Typical Antenna Gain | |
| Connector | |
| Impedance | |
| HPBW/Horizontal | |
| HPBW/Vertical |
