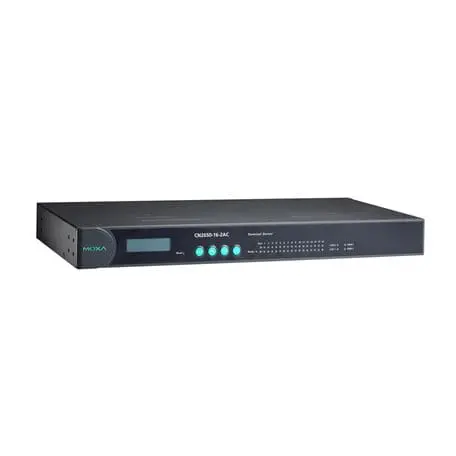

16 port Terminal Server, dual 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, Dual 100V to 240V, -40~75℃
Available on back-order
Redundancy is an important issue for industrial networks, and various types of solutions have been developed to provide alternative network paths when equipment or software failures occur. “Watchdog” hardware is installed to utilize redundant hardware, and a “Token”- switching software mechanism is applied. The CN2600 terminal server uses its built-in Dual-LAN ports to implement a “Redundant COM” mode that keeps your applications running uninterrupted.
The CN2600 has two separate LAN ports that can be connected to separate LAN networks. Dual-LAN redundancy involves setting up two separate physical networks to connect the PC host with the CN2600 (the PC host also requires two LAN cards). If one connection fails, the PC host can still communicate with your serial devices over the alternative LAN connection.
Moxa offers “Redundant COM,” an easy-to-use application to provide an alternative solution for network redundancy. When the CN2600 receives a data packet from a connected device, two identical data packets are sent over two independent LAN connections to prevent lost data packets if one LAN connection becomes unavailable. The CN2600 software is programmed to automatically discard duplicate data packets.
The CN2600’s dual-LAN cards can also be used to set up “dual-host” redundancy. In this case, both networks (LAN A and LAN B in the figure) are connected to two different hosts. If either of the two hosts shuts down unexpectedly, the other host will still be able to communicate with serial devices connected to the CN2600.
Dual-power redundancy uses two power inputs and redundant internal power supplies to ensure that all of the CN2600’s functions will be available, even in the event of power circuit failures.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
8 ports RS-232/422/485 Terminal server with DB9 connector, 100-200VAC input with adapter with 2 KV isolation

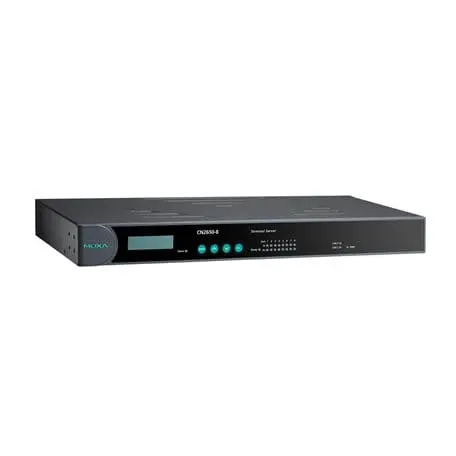

8 Port Terminal Server, 3 in 1, Isolation, Dual 10/100M Ethernet, 88-300 VDC, -40 to 85°C
8 ports RS-232/422/485 Terminal server with DB9 connector, Dual 100-200VAC input with adapter with 2 KV isolation
16 ports RS-232/422/485 Terminal server with DB9 connector, 100-200VAC input with adapter with 2 KV isolation
16 ports RS-232/422/485 Terminal server with DB9 connector, Dual 100-200VAC input with adapter with 2 KV isolation

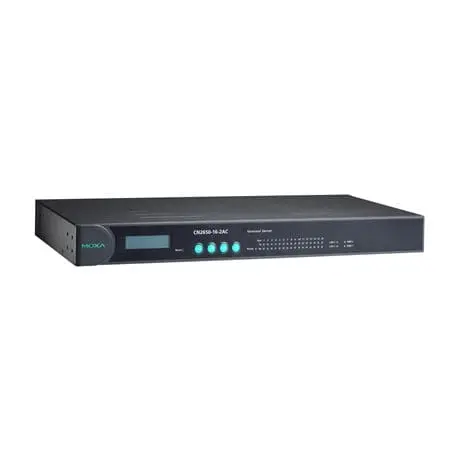

16 Port Terminal Server, 3 in 1, Isolation, Dual 10/100M Ethernet, 88-300 VDC, -40 to 85°C
8 port Terminal Server, dual 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100V to 240V
8 port Terminal Server, dual 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, Dual 100V to 240V
8 port Terminal Server, dual 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, Dual 100V to 240V, -40~75℃
16 port Terminal Server, dual 10/100M Ethernet, RS-232/422/485, RJ-45 8pin, 100V to 240V
| Configuration Options | |
|---|---|
| Management | ARP, BOOTP, DDNS, DHCP Client, DNS, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, ICMP, SLIP |
| MIB | |
| Authentication | |
| Encryption | |
| Connector | |
| RS-232 | |
| RS-422 | |
| RS-485-4w | |
| No. of Power Inputs | |
| Input Current | |
| Input Voltage | |
| Automatic Reboot Trigger | |
| Alert Tools | |
| RS-485 Data Direction Control | |
| Terminator for RS-485 | |
| Console Port | |
| Installation | |
| Dimensions (with ears) | |
| Weight | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Green Product | |
| Time | |
| Standards | |
| Warranty Period | |
| Details | |
| Housing | |
| Ambient Relative Humidity |
