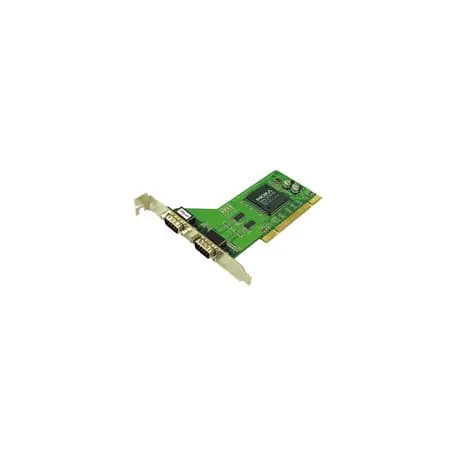

2 Port PCI Board, RS-232, Wide Temperature
Available on back-order
The CP-102U and CP-102UL are 2-port universal PCI boards designed for POS and ATM applications. They are designed especially for industrial automation engineers and system integrators to support many different operating systems, including Windows, Linux, and even UNIX. In addition, each RS-232 serial port supports up to 921.6 kbps baudrate. The CP-102U and CP-102UL implement full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any PC.
The CP-102UL is a low-profile board requiring a 5 VDC power supply. It is compatible with both a 3.3 V and 5 V PCI bus, allowing the CP-102UL to be tucked inside compact PCs.
With 30-plus years of experience in serial board design, Moxa is now concentrating on a new high-performance serial data transmission chip. The Turbo Serial Engine™ chip provides serial boards with a 128-byte FIFO, on-chip hardware and software flow control, and burst data mode. With Turbo Serial Engine™, Moxa is able to offer advanced smart serial boards with unbeatable transmission performance.
Moxa continues to support a wide variety of operating systems, and the CP-102U/UL boards are no exception. Reliable Windows and Linux/UNIX drivers are provided for all Moxa boards, with support for many operating systems, including WEPOS, for embedded integration.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
2 Port UPCI Board, Cable, RS-232, Low Profile, Wide Temperature
2 Port UPCI Board, w/ DB9M Cable, RS-232, Low Profile
| Weight | 0.2000 kg |
|---|---|
| Comm. Controller | |
| RS-232 | |
| Windows Drivers | |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| Dimensions | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Parity | |
| Flow Control | |
| Green Product | |
| Time | |
| Warranty Period | |
| Details | |
| Input Current | |
| Ambient Relative Humidity | |
| EMC | |
| EMI |
