8-Port Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C
5 in stock (can be backordered)
The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.
The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

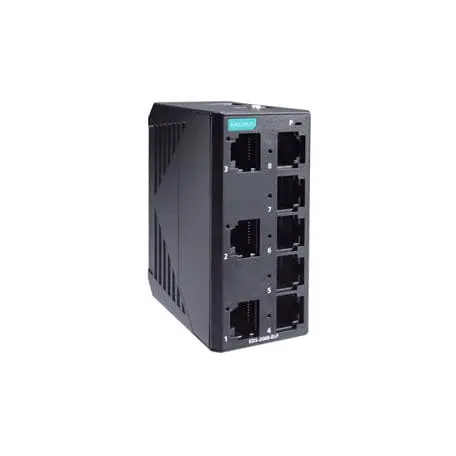

The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel..
The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

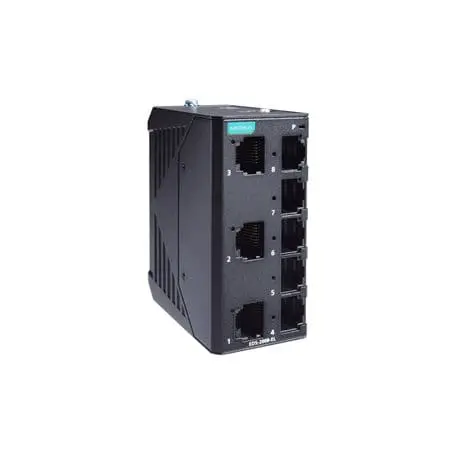

8-Port Entry-level Unmanaged Switch, 8 Fast TP ports, -10 to 60°C
8-Port Entry-level Unmanaged Switch, 7 Fast TP ports, 1 multi-mode port, SC, -10 to 60°C
8-Port Entry-level Unmanaged Switch, 8 Fast TP ports, -40 to 75°C

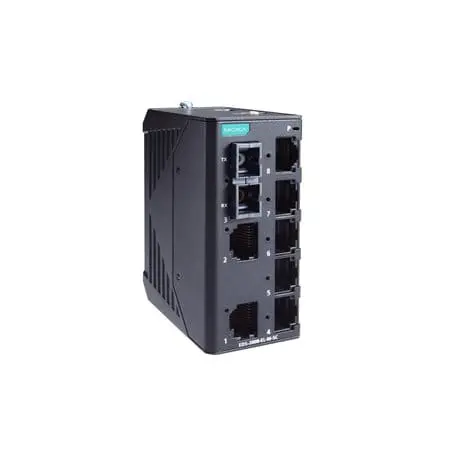

8-Port Entry-level Unmanaged Switch, 7 Fast TP ports, 1 multi-mode port, SC, -40 to 75°C
8-Port Entry-level Unmanaged Switch, 7 Fast TP ports, 1 multi-mode port, ST, -10 to 60°C

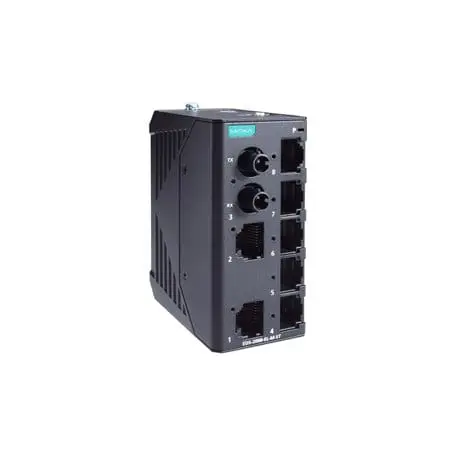

8-Port Entry-level Unmanaged Switch, 7 Fast TP ports, 1 multi-mode port, ST, -40 to 75°C
| Processing Type | |
|---|---|
| MAC Table Size | |
| Packet Buffer Size | |
| Ethernet Interface | |
| Connection | |
| Dimensions | |
| Installation | |
| Housing | |
| Ambient Relative Humidity | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Safety | |
| EMC | |
| EMI | |
| EMS | |
| Shock | |
| Vibration | |
| Freefall | |
| Time | |
| Standards | |
| Warranty Period | |
| Details |
