Supported Documents
Name | Type | Version | Release Date |
---|---|---|---|
|
Datasheet | v1.4 |
Feb 14, 2023 |
|
Manual | v1.1 |
Jan 18, 2023 |

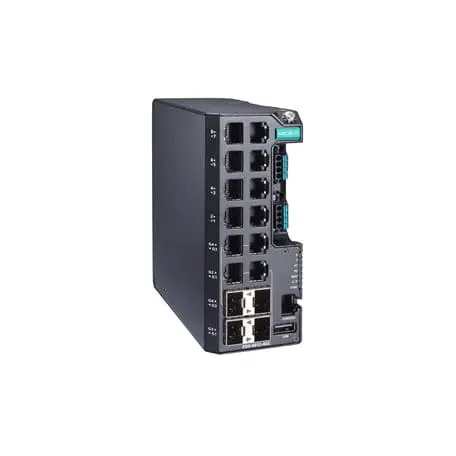

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
Available on back-order
The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4012 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

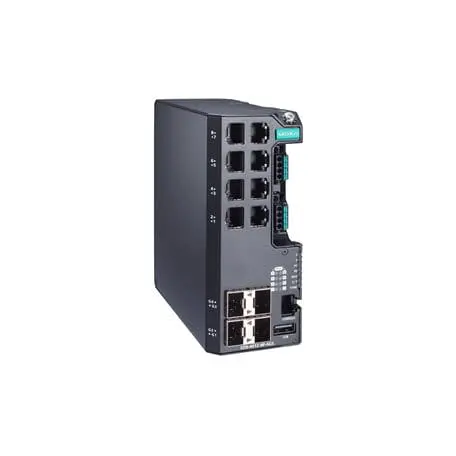

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, 48 VDC for PoE, -40 to 75°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
Available on back-order

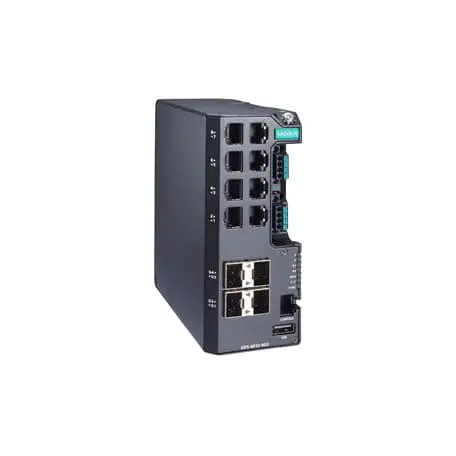

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature
Available on back-order
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports with 802.3bt PoE, 4 100/1000BaseSFP ports, dual power inputs 12/24/48 VDC, 48 VDC for PoE, -10 to 60°C operating temperature
Available on back-order
Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
---|---|
Management | |
MIB | |
MAC Table Size | |
Jumbo Frame Size | |
LED Indicators | |
Console Port | |
USB Connector | |
Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
Digital Input Channels | |
Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
Buttons | |
Reverse Polarity Protection | |
Traffic Control | |
Power Substation | |
Hazardous Locations | |
DIP Switches | |
Connection | |
Pre-installed Power Module | |
IP Rating | |
Operating Temperature | -10 to 60°C (14 to 140°F) |
Ambient Relative Humidity | |
Industrial Cybersecurity | |
CISPR 32, FCC Part 15B Class A | |
Time | |
Standards | |
Warranty Period | |
Details | |
Safety | |
EMC | |
EMI |
