Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
Datasheet | v1.3 |
Jan 18, 2023 |
|
|
Manual | v1.1 |
Jan 18, 2023 |

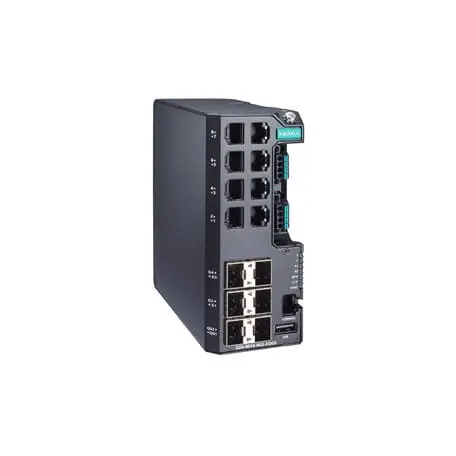

Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -10 to 60°C operating temperature
Available on back-order
The EDS-4014 Series is a range of 14-port managed Fast Ethernet switches with four 1 Gbps and two 2.5 Gbps fiber-optic ports.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4014 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.
The EDS-4014 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -10 to 60°C operating temperature
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, dual power inputs 12/24/48 VDC, -40 to 75°C operating temperature
Managed Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 4 100/1000BaseSFP ports, 2 1000/2500BaseSFP ports, single power input 110/220 VAC/VDC, -40 to 75°C operating temperature
| Weight | 0.8460 kg |
|---|---|
| Filter | GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| EMI | |
| Management | |
| MIB | |
| MAC Table Size | |
| Jumbo Frame Size | |
| LED Indicators | |
| Console Port | |
| USB Connector | |
| Alarm Contact Channels | 1, Relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Input Channels | |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| Buttons | |
| Traffic Control | |
| Power Substation | |
| Hazardous Locations | |
| DIP Switches | |
| Connection | |
| Pre-installed Power Module | |
| IP Rating | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Industrial Cybersecurity | |
| EMC | |
| Time | |
| Warranty Period | |
| Details | |
| Housing | |
| Safety |
