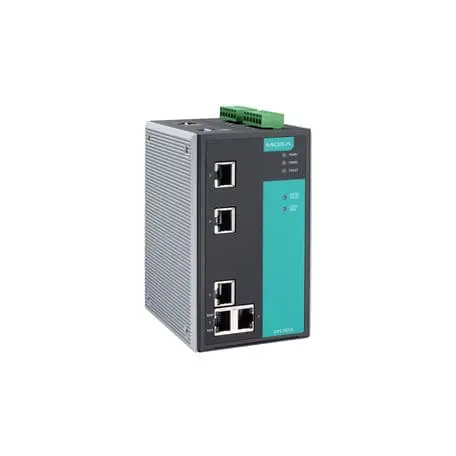

Managed Ethernet switch with 5 10/100BaseT(X) ports, -10 to 60°C operating temperature
2 in stock (can be backordered)
The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
Lock port function for blocking unauthorized access based on MAC address
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management
Bandwidth management to prevent unpredictable network status
Automatic warning by exception through email and relay output
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

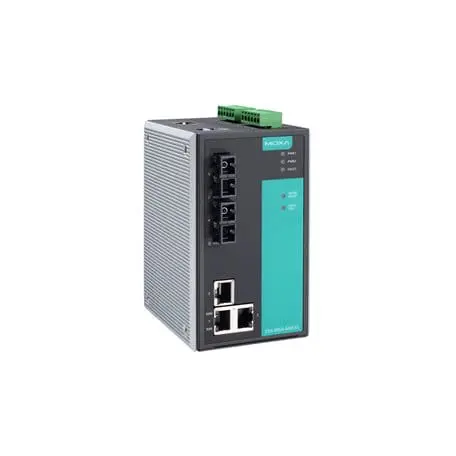

Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -10 to 60°C operating temperature
Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40 to 75°C operating temperature
Managed Ethernet switch with 5 10/100BaseT(X) ports, -40 to 75°C operating temperature

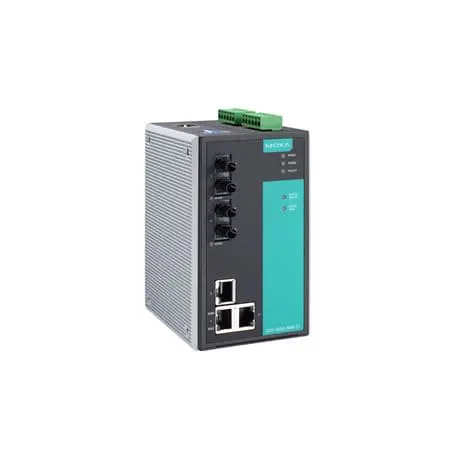

Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature
Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -10 to 60°C operating temperature
Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -10 to 60°C operating temperature
Managed Ethernet switch with 3 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature
| Alarm Contact Channels | 2, Relay output with current carrying capacity of 1 A @ 24 VDC |
|---|---|
| Optical Fiber | |
| Filter | |
| Industrial Protocols | |
| IGMP Groups | |
| LED Indicators | PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL |
| Console Port | |
| Ethernet Interface | |
| Connection | |
| Input Voltage | |
| Operating Voltage | |
| Overload Current Protection | |
| Housing | |
| IP Rating | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Safety | |
| Hazardous Locations | |
| EMC | |
| Shock | |
| Freefall | |
| Vibration | |
| Time | |
| Standards | |
| Warranty Period | |
| Details | |
| Weight | |
| Installation | |
| EMI |
