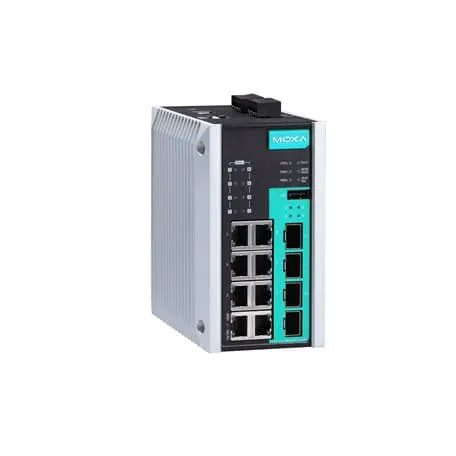

12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -40 to 75°C operating temperature
Available on back-order
The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Command line interface (CLI) for quickly configuring major managed functions
Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
Port mirroring for online debugging
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic warning by exception through email and relay output
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Managed full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -10°C to 60°C operating temperature

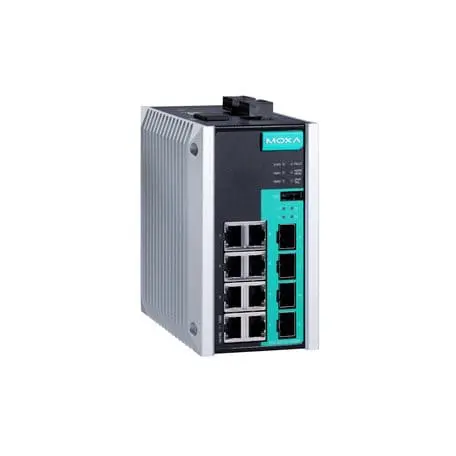

Managed full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, and 4 100/1000Base SFP slots, -40°C to 75°C operating temperature
12-port full Gigabit managed Ethernet switch, 8 10/100/1000BaseT PoE/PoE+ ports, 4 100/1000BaseSFP slots, -10 to 60°C operating temperature
| Alarm Contact Channels | 1 Relay output with current carrying capacity of 1 A @ 24 VDC |
|---|---|
| 100/1000BaseSFP Slots | |
| Filter | 802.1Q VLAN BPDU Filter BPDU Guard GMRP GVRP IGMP v1/v2/v3 Port-based VLAN |
| Industrial Protocols | |
| IGMP Groups | |
| Storage Port | |
| LED Indicators | |
| Console Port | |
| DIP Switches | |
| Connection | |
| Input Current | |
| Housing | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | |
| Safety | |
| EMS | |
| EMI | |
| IEC 61850-3 IEEE 1613 | |
| Time | |
| Standards | |
| Warranty Period | |
