Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
Manual | v9.8 |
Nov 25, 2022 |

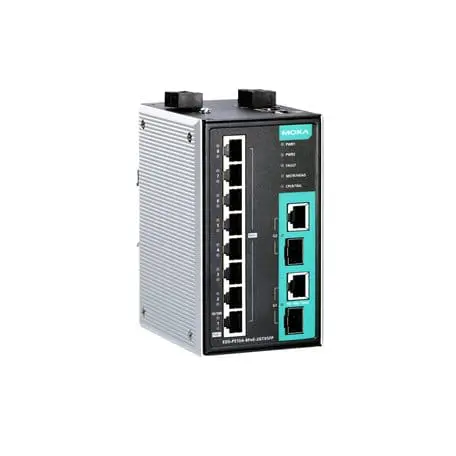

Managed Ethernet PoE Switch with 8 PoE+ ports, 2 combo gigabit Ethernet ports, -40 to 75°C
Available on back-order
The EDS-P510 Series Gigabit managed redundant Ethernet switches have 4 10/100BaseT(X) 802.3af (PoE) compliant Ethernet ports and 3 combo Gigabit Ethernet ports. The EDS-P510 switches provide up to 15.4 watts of power per PoE port, and allow power to be supplied to connected devices (such as surveillance cameras, wireless access points, and IP phones) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P510 switches are highly versatile, and their SFP fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features.
The EDS-P510 Series is designed especially for security automation applications such as IP surveillance and entry system gates, which can benefit from a scalable backbone construction and PoE.
Advanced PoE management function (PoEport setting, PD failure check, and PoE scheduling)
Command Line Interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), RSTP/STP, and MSTP for network redundancy
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
Lock port function for blocking unauthorized access based on MAC address
SNMPv1/v2c/v3 for different levels of network management
RMON for efficient network monitoring and proactive capability
Bandwidth management to prevent unpredictable network status
Port mirroring for online debugging
Automatic warning by exception through e-mail, relay output
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Managed Ethernet PoE Switch with 8 PoE+ ports, 2 combo gigabit Ethernet ports, -10 to 60°C

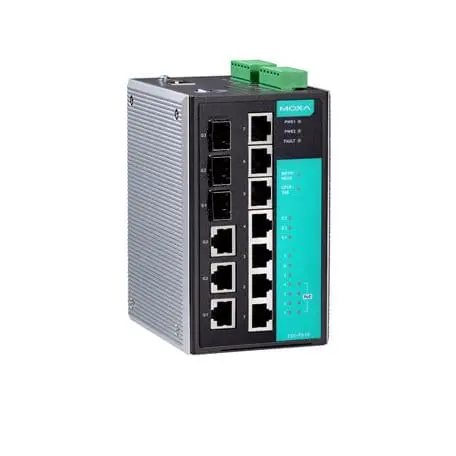

Managed Gigabit Ethernet switch with 3 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP slots combo ports, -40 to 75°C
Managed Gigabit Ethernet switch with 3 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 3 10/100/1000BaseT(X) or 100/1000BaseSFP slots combo ports, 0 to 60°C
| Filter | |
|---|---|
| Industrial Protocols | |
| Management | |
| IGMP Groups | |
| MAC Table Size | |
| Console Port | |
| Ethernet Interface | |
| Alarm Contact Channels | 1 Relay output with current carrying capacity of 0.5 A @ 48 VDC |
| Digital Input Channels | |
| Digital Inputs | Max. input current: 8 mA +13 to +30 V for state 1 -30 to +3 V for state 0 |
| Input Voltage | |
| Operating Voltage | |
| Input Current | |
| Power Consumption (Max.) | |
| Power Budget | Max. 240 W for total PD consumption Max. 36 W for each PoE port |
| Connection | |
| Overload Current Protection | |
| Reverse Polarity Protection | |
| Vibration | |
| Housing | |
| IP Rating | |
| Dimensions | |
| Installation | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Safety | |
| Time | |
| Standards | |
| Warranty Period | |
| Details |
