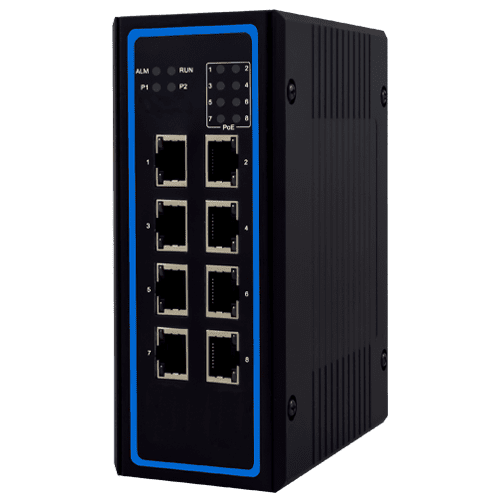

8-Port Unmanaged Gigabit Ethernet Switch
Available on back-order
The EHG6408 model features 8 x 10/100/1000BASET(X) ports, which supports a port configuration mix of up to 8 x non-PoE ports and either 4 x or 8 x PoE ports. Full configuration options are available in the ordering information.
Industrial Grade Design
With its modern, slim, and flat design to minimize surface area usage, this switch series is ideal for demanding industrial applications that require compact solutions to deliver network performance.
Supporting a wide operating temperature range of -40°C to 75°C and being compliant with essential sections of UL/CB(IEC) 62368-1, and MIL-STD-810F, this switch series is a powerful compact device that can perform in various environments under a variety of conditions, such as power input voltage, shock, drop and vibration.
PoE Voltage Booster Option
As part of its compact design, this switch series is available with an optional voltage booster for PoE end devices. Available on the 24V models, the PoE Voltage Boost raises the input voltage of power inputs from as low as 12V to provide Power over Ethernet to end devices. This removes the need for additional, separate power inputs, which can often be costly and space-consuming.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
8-Port Unmanaged Gigabit Ethernet Switch with 4 PoE ports, 12 VDC or 24 VDC PoE booster
8-Port Unmanaged Gigabit Ethernet Switch with 8 PoE ports, 12 VDC or 24 VDC PoE booster
| Processing Scheme | |
|---|---|
| MAC Address Table | |
| Packet Buffer Size | |
| Jumbo Frame | |
| Compliance | |
| Flow Control | |
| RJ 45 Transmission Rate | |
| SFP Transmission Rate | 100/1000 Mbps (by Dip-switch) – EHG6410-D only 1000 Mbps – EHG6410 (without -D extension only) |
| Auto MDI/MDI-X | |
| PoE Voltage Booster | |
| Input Voltage | |
| Input Current | |
| Max. Power Consumption | |
| Indicators | |
| Housing | |
| Dimension (W x H x D) | |
| Weight | |
| Installation | |
| Operating Temperature | Non-PoE models: -40°C to +75°C (-40°F to +167°F) PoE models: 12~23VDC, 60W, -40°C to +70°C (-40°F to +158°F) 24~57VDC, 120W,-40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | |
| Ambient Relative Humidity |
| Version | Name | Time | Size | Download |
|---|---|---|---|---|
| v1.4 | Datasheet EN | 2024-02-27 | 391.85 KB | Download |
