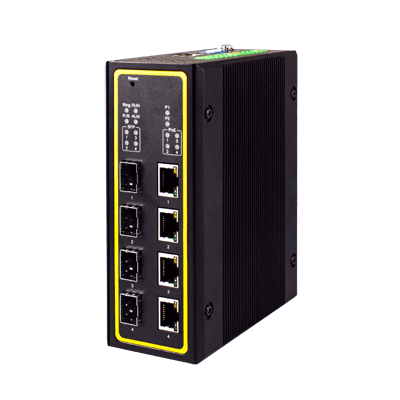

8-Port Managed Gigabit Layer-3 Switch, 4 PoE, 4 SFP
Available on back-order
The EHG7608 Series is an Industrial Grade Layer-3 Managed Gigabit Ethernet PoE Switch. Designed to provide a highly reliable, fault-tolerant, extremely fast network connection in a harsh environment, EHG7608 Series equips two terminal blocks to provide dual redundant power inputs with Reverse Polarity Protection and allows field engineers to build up a stand-alone fault alarm system. EHG76XX family is UL, CE, FCC and NEMA TS-2 certified, allowing the use in Traffic Control Applications.
Within its compact DIN-Rail housing design, the EHG7608 series allows you to choose between different port combinations: 10/100/1000 BASE-T(X) RJ45 port, 1000 BASE-X SFP port and IEEE 802.3af/at complaint PoE RJ45. EHG7608 provide, in its 8-PoE-Port Version, up to 240W power budget. Layer-3 Features support IPv4, RIP v1/v2, OSPF v1/v2 and many more.
This is the right choice if you want to set up a Reliable network environment with its intelligent features and keep equipment connected all the time, even in case of temporary network breakdowns through RSTP, ERPS Rings and MRP (Manager/ Client) redundancy. And that’s not all. Designed specifically for Automation, it is Profinet CC-B, MAC-based Black List/White List, IEEE 802.1x, RADIUS, TACACS+, etc., and keep your network safe.
Automation and IoT ready: Conforming with Profinet CC-B v2.33 makes EHG7608 the perfect candidate for being the backbone of your Industrial automation.
EN50155 and EN50121-4 Certified: Having undergone environmental testing to ensure reliable performance under a variety of power supply conditions, such as voltage variations, power interruptions, and supply changeovers, this switch Series is fully EN50155-certified for today’s demanding railway applications, as well as complying with essential sections of EN50121-4 for ground equipment.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
8-Port Managed Gigabit Layer-3 Switch with 4 SFP
8-Port Managed Gigabit Layer-3 Switch with 8 PoE
| Priority Queues | |
|---|---|
| VLAN Table | |
| MAC-Based VLAN | |
| VLAN ID Range | |
| Trunk Group | |
| Static IGMP Groups | |
| Dynamic IGMP Groups | |
| MAC Table Size | |
| Packet Buffer Size | |
| Jumbo Frame | |
| Standards | |
| Protocols | |
| Layer-3 Protocols | |
| Redundancy | ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring |
| Time Synchronization | |
| Automation Profiles | |
| Input Current/Power (System) | |
| Power Input | |
| Reverse Polarity Protection | |
| Ethernet Ports | 8 x 10/100/1000BASE-T(X) auto negotiation speed –M12 connector |
| Fiber Optics Ports | |
| Console | |
| LED Indicators | |
| Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC (through A-coding M12 connector) |
| Housing | |
| Dimension (W x H x D) | |
| Weight | |
| Installation | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | |
| Ambient Relative Humidity |
