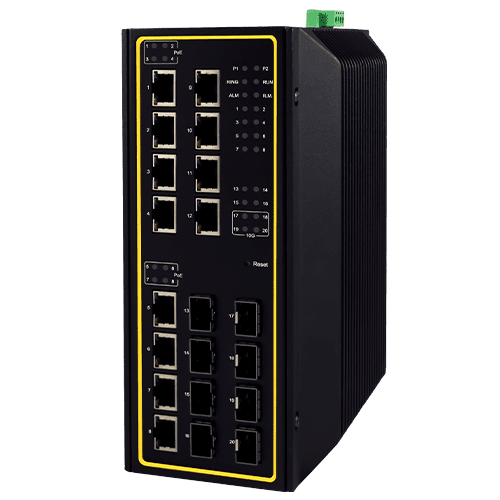

20-Port Managed Gigabit Layer-3 Switch with 16 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
Designed to be adaptive, with unprecedented throughput: Atop’s EHG7620 Series offers several different versions making it a very flexible product based on your specific needs for Layer-3 Switching. No matter the version, this device offers 4 x 1/10 Gigabit Ethernet SFP uplinks making it a cost-effective, reliable industrial solution where high-throughput and high-reliability is fundamental.
Layer-3 routing support IPv4 static routing, RIP v1/v2 and OSPFv2. Designed for PoE, in wide temperature: EHG7620 supports up to 20 Gigabit ports in different configurations, either Copper, PoE or Fiber, any 8-port multiple configuration. Specifically designed for bringing power through Ethernet cable virtually anywhere, a maximum output Power over Ethernet of 240W over a maximum of 8 PoE/PoE+ ports is allowed (802.3af/at).
Rugged, Wide-Temperature, Well protected design: EHG7620 is EN61000-6-2, EN61000-6-4, IEC/EN/UL62368-1:2014 and FCC
certified certified and is designed to withstand the harshest environments and the most demanding EMC environment. Its fanless design and EMC Level 3 protection guarantee reliable operations within -40 and +70°C, guaranteeing no packet is lost with all ports running full power and makes it suitable to be used for almost every application.
Powerful and versatile: With its high performance, it provides network redundant self-recovery mechanism is less than 20ms on full load that enables the user to build a reliable network through almost any redundant ring topology. It supports ITU-T G.8032 ERPS Ring, IEEE802.1D-2004 RSTP, STP, MSTP, MRP (Manager/ Client), iA-Ring, iA-Chain and many compatible rings protocols for network redundancy. With a Multifunctional web dashboard, its offers intelligent features such as QoS, VLAN, IGMP, Port mirroring and security.
Application-Specific: NEMA TS-2 Certification makes EHG7620 family the perfect choice for Smart City and Traffic Control applications.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
20-Port Managed Gigabit Layer-3 Switch with 4 RJ45, 12 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 16 RJ45 and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 4 PoE, 12 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 12 RJ45, 4 PoE and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 S with 8 RJ45, 4 PoE, 4 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 12 RJ45, 4 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 8 RJ45, 8 PoE and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 S with 4 RJ45, 8 PoE, 4 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
20-Port Managed Gigabit Layer-3 Switch with 8 RJ45, 8 SFP and 4 x 10 Gigabit SFP uplink ports
Available on back-order
Priority Queues | |
---|---|
VLAN Table | |
MAC-Based VLAN | |
VLAN ID Range | |
Trunk Group | |
Static IGMP Groups | |
Dynamic IGMP Groups | |
MAC Table Size | |
Packet Buffer Size | |
Jumbo Frame | |
Standards | |
Protocols | |
Layer-3 Protocols | |
Redundancy | ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring |
Time Synchronization | |
Automation Profiles | |
SNMP MIB | |
Input Voltage | 9-57 VDC for Non-PoE models 45-57 VDC for 802.3af mode 51-57 VDC for 802.3at mode |
Input Current (System) | |
Power Consumption (System) | |
Connector | |
Reverse Polarity Protection | |
RJ45 Ports | |
Fiber Optics Ports | Up to 16 100/1000BASE-X SFP slot plus 4 1000BASE-X or 4 10G SFP slots |
LED Indicators | PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE |
Console | |
Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC |
DIP Switches | |
Button | |
Housing | |
Dimension (W x H x D) | |
Weight | |
Installation | |
Operating Temperature | -20°C~70°C (-4°F~158°F) |
Storage Temperature | |
Ambient Relative Humidity |
