10-Port Layer-3 Gigabit EN50155 Switch with 8 M12 connectors and 2 SFP ports, 9~48 VDC input
Available on back-order

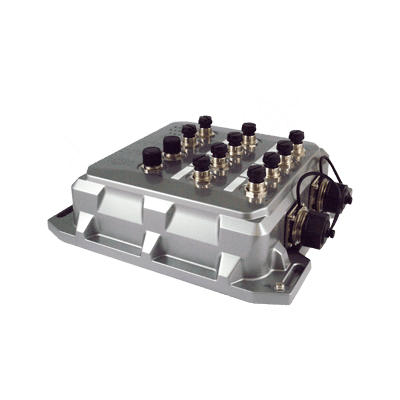

ATOP’s EMG8610 IP67-rated Railway-compliant Ethernet switch is the best solution for providing high-speed Gigabit connectivity in bayside or carriage side Railway applications. Its rugged, aluminum enclosure can effectively protect the Switch core in any environment.
The 8-M12 Connectors Gigabit ports can supply up to 30W of PoE Power (802.3af or 802.3at) to your PoE device providing an overall maximum budget of 240W. This makes EMG8610 the ideal solution for on-board or off-board surveillance by simplifying the wiring where it’s difficult, risky and expensive to introduce new elements.
Two Gigabit SFP slots provide to EMG8610 Series the capability to be connected with Fiber-Optics to the backbone without the need of Copper Ethernet repeaters and without any risk of signal degradation.
The embedded redundant-power supply input provides a reliable and failure-proof safety mechanism to minimize down-times. EMG8610 comes in either redundant Low-Voltage DC power input (12~57 VDC, 47~57 VDC for PoE models) or in redundant High-Voltage DC power input (50~145 VDC). Each power module, including a Relay-output alarm, uses a S-coding M12 connector that makes EMG8610 ideal and simple for engineers setting up a Fault-Alarm System.
Its IP67 housing protection, combined with a wide operating temperature of -40 to 70°C and wall mounting capacities make it suitable to most Railway applications in harsh environments or industrial filed applications.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
10-Port Layer-3 Gigabit EN50155 Switch, 8 M12 connectors and 2 SFP ports, 50~150 VDC input
Available on back-order
10-Port Layer-3 Gigabit EN50155 Switch, 8-M12 connectors (4 with PoE), 2 SFP 45~57 VDC input
Available on back-order
10-Port Layer-3 Gigabit EN50155 Switch, 8-M12 connectors (8 with PoE), 2 SFP, 45~57 VDC input
Available on back-order
Priority Queues | |
---|---|
VLAN Table | |
MAC-Based VLAN | |
VLAN ID Range | |
Trunk Group | |
Static IGMP Groups | |
Dynamic IGMP Groups | |
MAC Table Size | |
Packet Buffer Size | |
Jumbo Frame | |
Standards | |
Protocols | |
Layer-3 Protocols | |
Automation Profiles | |
SNMP MIB | |
Input Voltage | |
Input Current/Power (System) | |
Power Input | |
Reverse Polarity Protection | |
LED Indicators | |
Ethernet Ports | 8 x 10/100/1000BASE-T(X) auto negotiation speed –M12 connector |
Console | |
Relay Output | 2 relay outputs with current carrying capacity of 1A @ 24 VDC (through A-coding M12 connector) |
Fiber Optics Ports | |
Housing | |
Dimension (W x H x D) | |
Weight | |
Installation | |
Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Storage Temperature | |
Ambient Relative Humidity |
