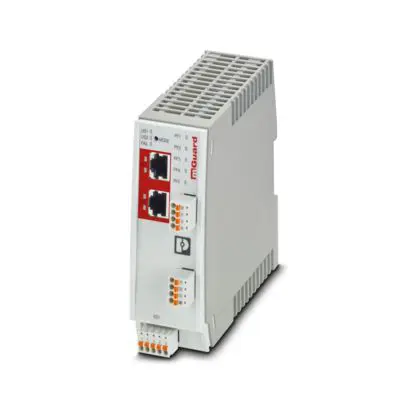

Name: FL MGUARD 2102
Brand: Phoenix Contact
SKU: 1357828
Availability: InStock
Rating: 5 (4 reviews)

Security-Router, 2 RJ45 ports 10/100/1000 Mbps, NAT, VPN, Simple stateful inspection firewall, safe isolation for PROFIsafe in accordance with IEC 61784-3-3

1 products currently in stock.

The stock was last updated at 5:10 pm Wednesday, 18 December, 2024. Please contact us for lead times if needed.

Series Description

Security-Router, 2 RJ45 ports 10/100/1000 Mbps, NAT, VPN, Simple stateful inspection firewall, safe isolation for PROFIsafe in accordance with IEC 61784-3-3

Need Support?

We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

FL MGUARD 2102

The FL MGUARD 2102 is part of a wider series. A series refers to a collection of related products or components designed to work together seamlessly, typically within a specific industry or application. These series often share similar features and functionalities, ensuring compatibility and ease of integration for users.

There are no listed accessories for this product

If you are looking for accessories for this product, please contact us and our sales team will advise you on what products work really well when using any product from the FL MGUARD 2102.

Product Specification

Additional information

Width	45 mm
Height	130 mm
Depth	133.8 mm
Note on application	Only for industrial use
Color	gray
Housing material	Plastic
Connection method	RJ45, Push-in-/Spring-cage connection
Transmission speed	10/100/1000 Mbps
Transmission physics	Ethernet in RJ45 twisted pair
Transmission length	100 m (per segment)
Signal LEDs	Supply voltage, data transmission, error, link, activity
No. of channels	2 (RJ45 ports) 2x digital output, 2x digital input
Additional text	not electrically isolated
Basic functions	Router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot for SD memory card, extended temperature range, router with firewall and VPN for 2 tunnels (fixed), plastic housing, slot f
Supported browsers	HTTPS support required
Product type	Security router for the DIN rail
Product family	Security-Router
Type	Stand-Alone
Special properties	NAT, VPN
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)
Number of VPN tunnels	2 (Fixed, Ipsec (IETF standard))
Authentication	X.509v3 certificates with RSA or PSK
Data integrity	MD5, SHA-1, SHA 256, SHA-512
Filtering	Incoming or outgoing traffic
Firewall data throughput	max. 940 Mbps (Router mode, default firewall rules, unidirectional throughput), max. 850 Mbps (Stealth mode, default firewall rules, unidirectional throughput)
Firewall rules	Simple stateful inspection firewall, safe isolation for PROFIsafe in accordance with IEC 61784-3-3
Remote Syslog Logging	on externals server
Routing	Standard routing, NAT, 1:1-NAT, port forwarding
Encryption methods	DES, 3DES, AES-128, -192, -256
Local diagnostics	US1 Supply voltage US1 Green LED, One LED per port Link active / Speed Green / green/yellow LED
Supply voltage (DC)	24 V DC
Supply voltage range	12 V DC … 36 V DC
Power supply connection	via COMBICON, max. conductor cross section 1.5 mm²
Residual ripple	3.6 VPP (within the permitted voltage range)
Max. current consumption	1:00 AM
Typical current consumption	120 mA (at US = 24 V DC)
Degree of protection	IP20
Ambient temperature (operation)	-20 °C … 60 °C
Conformance	CE-compliant
Mounting type	DIN rail mounting
Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 61000-6-2:2005
Noise emission	EN 61000-6-4
Status display	LEDs: US1, FAIL, Link, and Activity

Phoenix Contact

Phoenix Contact offers a comprehensive range of products and solutions for electrical connections, electronic interface, and industrial automation applications. Their portfolio includes terminal blocks, connectors, controllers, and I/O systems, among other high-quality components and systems. The company is dedicated to advancing technological progress and supports its customers with a blend of innovation, precision engineering, and exceptional service.

Manuals & Datasheets

Supported Documents & Firmware Last Updated: December 6, 2024

Datasheets:

FL MGUARD 2102 – Router – Download

Manuals:

File	Description	Language	Version
(5.38 MB)	Prod.-Id. 107323: UM EN FL MGUARD DM mGuard device manager (mdm): Installation, Configuration and Usage in mdm 1.13.x	English	07
	Prod.-Id. 105656: UM EN MGUARD DEVICES Installing and starting up the mGuard hardware	English	09
