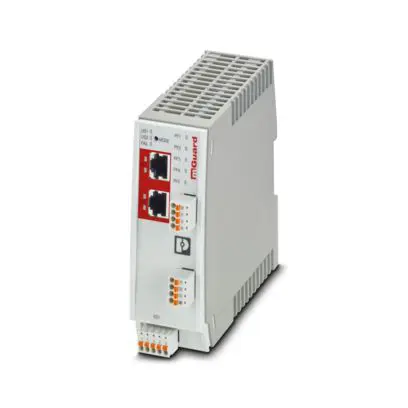

Name: FL MGUARD 4302
Brand: Phoenix Contact
SKU: 1357840
Availability: InStock
Rating: 5 (4 reviews)

Security-Router, 2 RJ45 ports 10/100/1000 Mbps, NAT, VPN, Development process certified in accordance with IEC 62443-4-1, Compatible with IEC 62443-4-2, Configurable stateful inspection firewall with full scope of functions, safe isolation for PROFIsafe in accordance with IEC 61784-3-3, user firewall, conditional firewall, rule sets

1 products currently in stock.

The stock was last updated at 5:11 pm Wednesday, 18 December, 2024. Please contact us for lead times if needed.

Series Description

Need Support?

We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

FL MGUARD 4302

The FL MGUARD 4302 is part of a wider series. A series refers to a collection of related products or components designed to work together seamlessly, typically within a specific industry or application. These series often share similar features and functionalities, ensuring compatibility and ease of integration for users.

There are no listed accessories for this product

If you are looking for accessories for this product, please contact us and our sales team will advise you on what products work really well when using any product from the FL MGUARD 4302.

Product Specification

Additional information

Width	45 mm
Height	130 mm
Depth	133.8 mm
Note on application	Only for industrial use
Color	gray
Housing material	Plastic
Connection method	RJ45, Push-in-/Spring-cage connection, RJ45 jack, shielded
Transmission speed	10/100/1000 Mbps
Transmission physics	Ethernet in RJ45 twisted pair
Transmission length	100 m (per segment)
Signal LEDs	Supply voltage, data transmission, error, link, activity
No. of channels	2 (RJ45 ports) 2x digital output, 2x digital input
Additional text	not electrically isolated
Basic functions	Security appliance with intelligent firewall and VPN for 250 tunnels, plastic housing, slot for SD memory card, extended temperature range, Gigabit wire speed
Supported browsers	HTTPS support required
Product type	Security router for the DIN rail
Product family	Security-Router
Type	Stand-Alone
Special properties	NAT, VPN, Development process certified in accordance with IEC 62443-4-1, Compatible with IEC 62443-4-2
Protection class	III (IEC 61140, EN 61140, VDE 0140-1)
Number of VPN tunnels	250
Authentication	X.509v3 certificates with RSA or PSK
Data integrity	MD5, SHA-1, SHA 256, SHA-512
Filtering	MAC and IP addresses, ports, protocols
Firewall data throughput	max. 940 Mbps (Router mode, default firewall rules, unidirectional throughput), max. 850 Mbps (Stealth mode, default firewall rules, unidirectional throughput)
Firewall rules	Configurable stateful inspection firewall with full scope of functions, safe isolation for PROFIsafe in accordance with IEC 61784-3-3, user firewall, conditional firewall, rule sets
Remote Syslog Logging	on externals server
Routing	Standard routing, NAT, 1:1-NAT, port forwarding
Protection against	IP spoofing, DoS and Syn Flood Protection
Encryption methods	DES, 3DES, AES-128, -192, -256
Local diagnostics	US1, US2 Supply voltage US1, US2 Green LED, One LED per port Link active / Speed Green / green/yellow LED
Supply voltage (DC)	24 V DC (redundant)
Supply voltage range	12 V DC … 36 V DC
Power supply connection	via COMBICON, max. conductor cross section 1.5 mm²
Residual ripple	3.6 VPP (within the permitted voltage range)
Max. current consumption	1:00 AM
Typical current consumption	120 mA (at US = 24 V DC)
Degree of protection	IP20
Ambient temperature (operation)	-40 °C … 60 °C
Conformance	CE-compliant
Mounting type	DIN rail mounting
Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Noise immunity	EN 61000-6-2:2005
Noise emission	EN 61000-6-4
Status display	LEDs: US1, US2, FAIL, Link, and Activity

Phoenix Contact

Phoenix Contact offers a comprehensive range of products and solutions for electrical connections, electronic interface, and industrial automation applications. Their portfolio includes terminal blocks, connectors, controllers, and I/O systems, among other high-quality components and systems. The company is dedicated to advancing technological progress and supports its customers with a blend of innovation, precision engineering, and exceptional service.

Manuals & Datasheets

Supported Documents & Firmware Last Updated: December 6, 2024

Datasheets:

FL MGUARD 4302 – Router – Download

Manuals:

File	Description	Language	Version
(9.29 MB) SHA256 checksum: 97c4612864887aa9570f87fd78391672f0b63fa129bd00334e82ba939dbb17f6	Prod.-Id. 110191: UM DE FW MGUARD10 mGuard 10.4: Web-based Management (Firmware)	German	08
(9 MB) SHA256 checksum: e48ca54cbcf3eea7272af6c7378c2e1a91743697dc47f376536a6647c27ed87d	Prod.-Id. 110191: UM EN FW MGUARD10 mGuard 10.4: Web-based management (Firmware)	English	08
(10.7 MB) SHA256 checksum: de3f981e69783a4e356550b8ee25af23af283cf025693e4878c3c8efb0763710	Prod.-Id. 110192: UM DE HW FL MGUARD 2000/4000 mGuard 10.x: Installation und Inbetriebnahme (Hardware)	German	07
(10.7 MB) SHA256 checksum: 256e0e6157214faefa67f51000819ed65deb1980e7dafcfb6a52d660a6839a1e	Prod.-Id. 110192: UM EN HW FL MGUARD 2000/4000 mGuard 10.x: Installation and startup (Hardware)	English	07
(2.74 MB) SHA256 checksum: 4b37507b73ed76b1bd83b7a834b938c3103ca76d059e997ef4d43c61b5d22081	Prod.-Id. 110193: UM DE GAICONFIG MGUARD10 mGuard 10.4: Generic Administration Interface – GAI Config User Guide	German	05
(2.65 MB) SHA256 checksum: 7ec68b50bdd0062473101a493f7cdae10c242b098e3e5cbab5a763cf91e5fe1c	Prod.-Id. 110193: UM EN GAICONFIG MGUARD10 mGuard 10.4: Generic Administration Interface – GAI Config User Guide	English	05
(1.53 MB) SHA256 checksum: d5a8c4db5ba0f636d706efde7709b4a5c20aa402be6ff632ba0eb7ca3eb3d84d	Prod.-Id. 109049: UM EN MGUARD 62443-4-2 Cover the functional range of IEC 62443-4-2 with mGuard devices	English	03
