Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
Datasheet | v1.7 |
May 17, 2023 |
|
|
Manual | v1.6 |
May 08, 2023 |

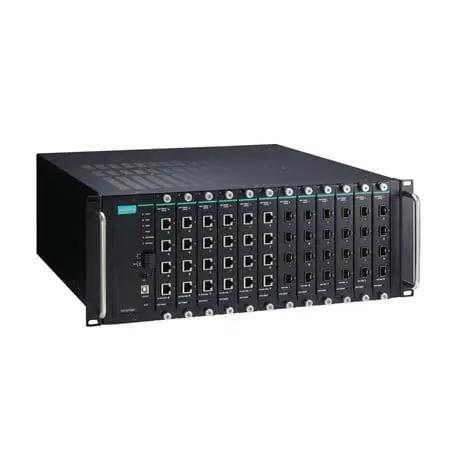

Layer 2 Full Gigabit managed Ethernet switch with 12 slots for 4-port 10/100/1000BaseT(X) module or 4-port 100/1000BaseSFP slot module, 2 isolated power supplies (85 to 264 VAC), -10 to 60°C operating temperature
Available on back-order
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7748A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports.
The ICS-G7748A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Redundant, dual AC power inputs
Digital inputs for integrating sensors and alarms with IP networks
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, RJ45 connectors, -10 to 60°C operating temperature
Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, -10 to 60°C operating temperature
Gigabit PoE+ Ethernet interface module with 4 10/100/1000BaseT(X) PoE+ ports, RJ45 connectors, -10 to 60°C operating temperature
| Alarm Contact Channels | |
|---|---|
| Slot Combination | |
| Management | |
| Filter | |
| DRAM | |
| Storage Port | |
| Console Port | |
| Input Voltage | |
| Operating Voltage | |
| Input Current | |
| Power Consumption (Max.) | |
| Total PoE Power Budget | |
| Overload Current Protection | |
| Reverse Polarity Protection | |
| IP Rating | |
| Dimensions | |
| Weight | |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Safety | |
| Time | |
| Standards | |
| Warranty Period | |
| Details |
