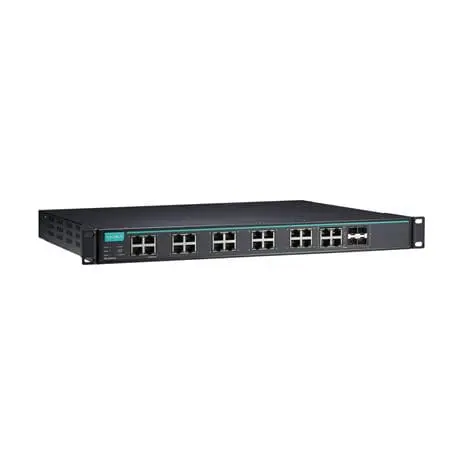

IKS-G6824A-4GTXSFP-HV-HV

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6824A Series is equipped with 24 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The IKS-G6824A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

• Layer 3 switching functionality to move data and information across networks

• Command line interface (CLI) for quickly configuring major managed functions

• Supports advanced VLAN capability with Q-in-Q tagging

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

• IGMP snooping and GMRP for filtering multicast traffic

• IEEE 802.1Q VLAN and GVRP protocol to ease network planning

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Redundant, dual AC power inputs

• Port Trunking for optimum bandwidth utilization

• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

• Access control lists (ACL) increase the flexibility and security of network management

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Digital inputs for integrating sensors and alarms with IP networks
