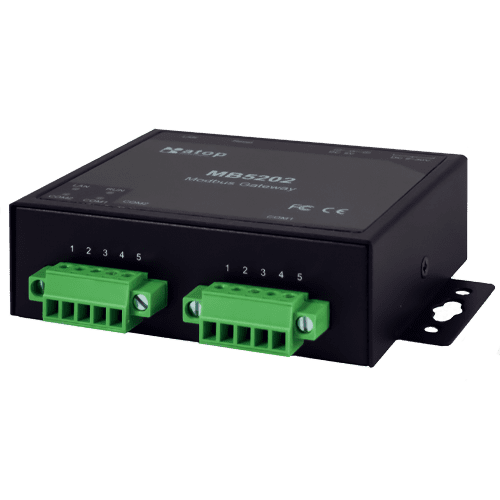

2-Port Modbus TCP/RTU Gateway, Industrial EMC, RS-232/422/485, DB9(M)
Available on back-order
Diverse Hardware Infrastructure
The MB5202 Modbus Gateway supports the four most commonly used communication standards, RS-232, RS-485, RS-422, and Ethernet. It comes with a user-friendly configuration utility to allow quick hardware interface selection, so you can easily connect to your existing communication infrastructure. And with industrial EMC protection plus a wide operation temperature range, MB5202 is ready for every mission.
Switching between Modbus Protocols
MB5202 supports the Modbus protocols and is capable of conversion between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces.
Modbus ID Routing
Besides various types of hardware communication interfaces and Modbus protocol conversion, MB5202 also supports Modbus ID routing. Therefore, it can integrate your existing and complex Modbus hardware configuration into a simple network for easy management.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
2-Port Modbus TCP/RTU Gateway, Industrial EMC, RS-232/422/485, DB9(M), SFP
2-Port Modbus TCP/RTU Gateway, Industrial EMC, RS-232/422/485, Terminal block, SFP
2-Port Modbus TCP/RTU Gateway, Industrial EMC, RS-232/422/485, 2kV Isolation, Terminal block
2-Port Modbus TCP/RTU Gateway, Industrial EMC, RS-232/422/485, Terminal block
| Ethernet Port | |
|---|---|
| Compliance | IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-T(X) and 100BASE-FX |
| Connector | 3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy, 9-Pin D-Sub9 connector(Male, -DB version) or 5-Pin Terminal block (-TB version) |
| Ports | |
| Mode | |
| Baud Rate | |
| Parity | |
| Data Bits | |
| Stop Bits | |
| Flow Control | |
| Input Voltage | |
| Power Consumption | |
| Power Redundancy | |
| Reverse Polarity Protection | |
| Dimension (W x H x D) | |
| Weight | |
| Installation | |
| Reset Button | |
| Operating Temperature | -20°C to +70°C (-4°F to +58°F) |
| Storage Temperature | |
| Ambient Relative Humidity | |
| Protocols | TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3 |
| Configuration | |
| VirtualCOM | |
| Modbus | |
| Supported Models | Ethernet: Modbus TCP Server/Client(or VCOM); Serial: Modbus RTU/ASCII (master/slave) |
