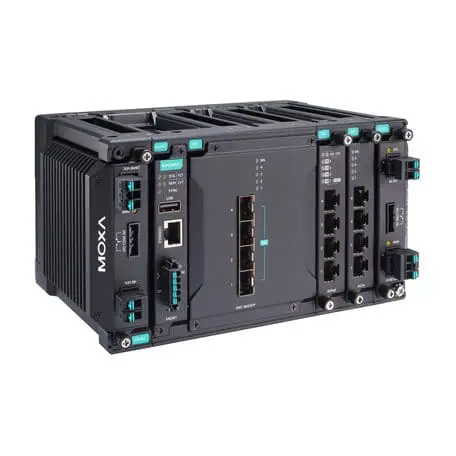

Layer 2 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit ports, 2 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 12 Gigabit ports, -40 to 75°C operating temperature
Available on back-order

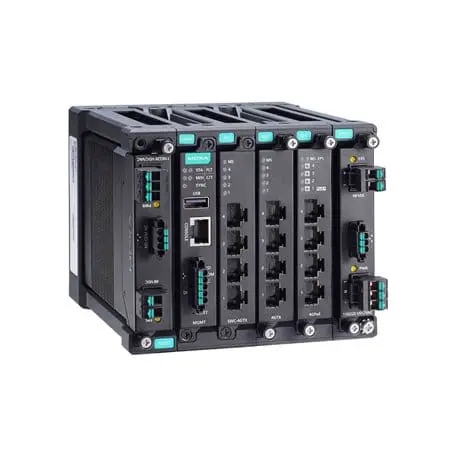

The MDS-G4012 Series modular switches support up to 12 Gigabit ports, including 4 embedded ports, 2 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4000 Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.
The multiple Ethernet modules (RJ45, SFP, and PoE+) and power units (24/48 VDC, 110 /220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4000 Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and a highly durable housing, the MDS-G4000 Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual power modules provides redundancy for high reliability and availability while LV and HV power module options offer additional flexibility to accommodate the power requirements of different applications.
In addition, the MDS-G4000 Series features an HTML5–based, user-friendly web interface providing a responsive, smooth user experience across different platforms and browsers.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Layer 2 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit ports, 2 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 12 Gigabit ports, -10 to 60°C operating temperature
4XG+8G-port Layer 3 full Gigabit modular managed Ethernet switches
Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit ports, 2 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 12 Gigabit ports, -10 to 60°C operating temperature
Layer 3 full Gigabit modular managed Ethernet switch with 4 fixed Gigabit ports, 2 slots for optional 4-port GE/FE modules, 2 slots for isolated power modules, up to 12 Gigabit ports, -40 to 75°C operating temperature
4XG+8G-port Layer 2 full Gigabit modular managed Ethernet switches

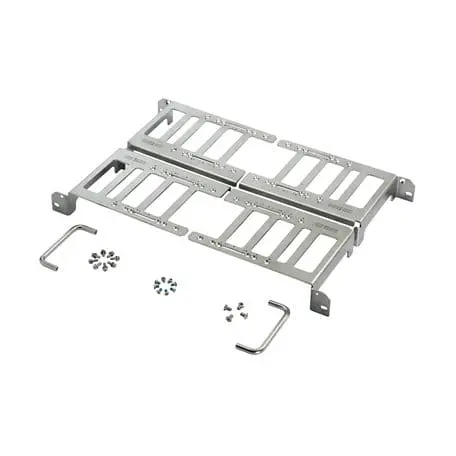

Rack-mounting kit with 4 L-shaped plates for the MDS-G4000 and MDS-G4000-4XGS Series

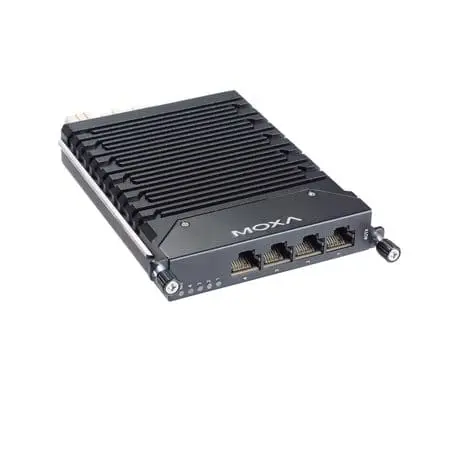

Giga Ethernet module with 4 10/100/1000Base-TX ports

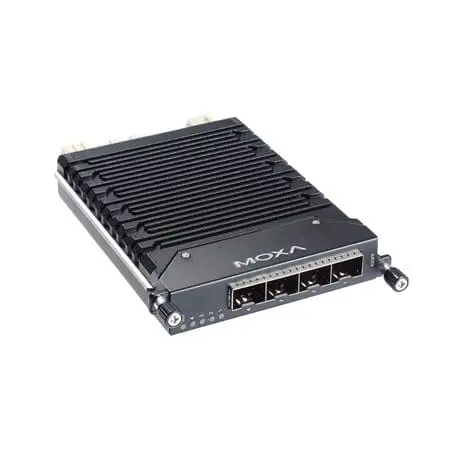

Giga Ethernet module with 4 10/100/1000Base SFP slots

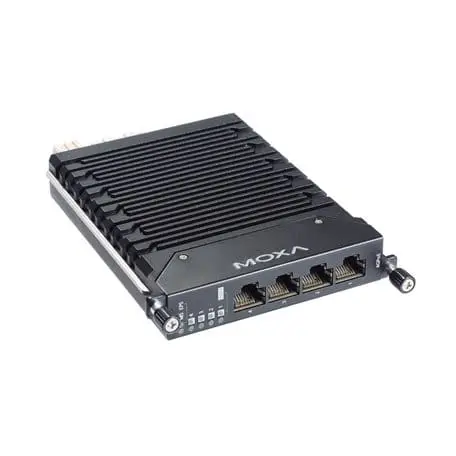

Giga Ethernet module with 4 10/100/1000Base-TX IEEE 802.3af/at PoE+ ports
Fast Ethernet module with 4 10/100Base-TX IEEE 802.3af/at PoE+ ports

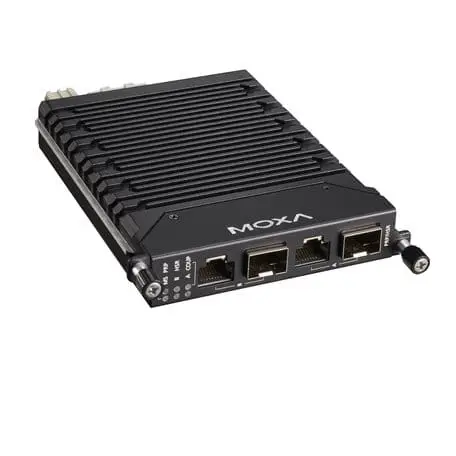

Giga Ethernet module for PT-G7728 series with 2 100/1000Base SFP slots or T(X) ports, PRP/HSR protocol support
Fast Ethernet module with 4 10/100Base-TX ports

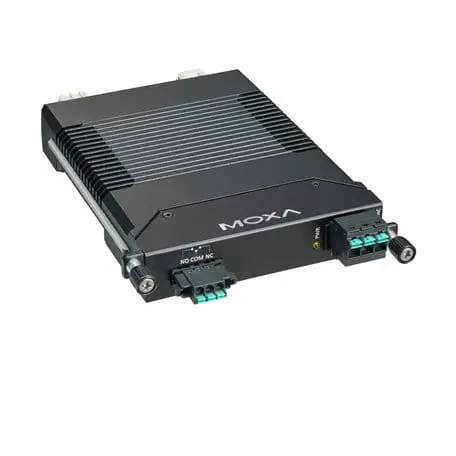

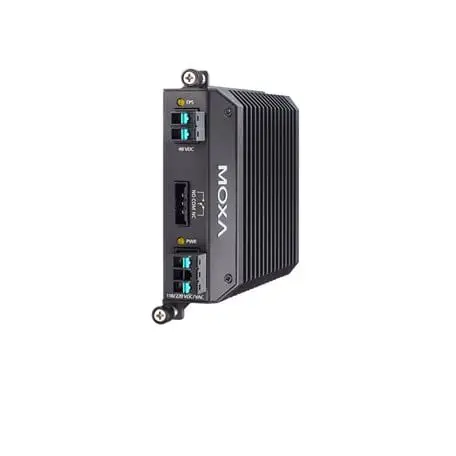

Power supply module (110/220 VAC/VDC) with system power input, relay

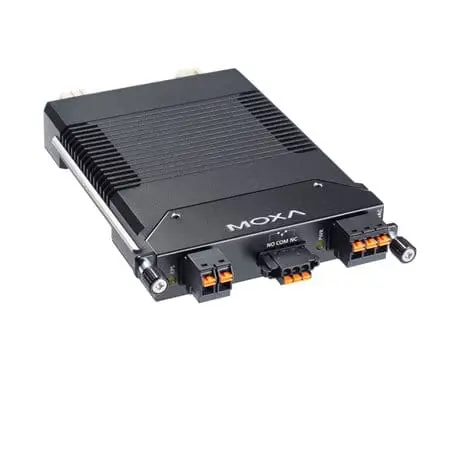

110/220 VAC/VDC power supply module with system power, relay, PoE power input, advanced heat sink for MDS-G4000-4XGS
Power supply module (110/220 VAC/VDC) with system power input, relay, PoE power input
