1-port Modbus-to-DNP3 gateway, -40 to 75°C operating temperature
Available on back-order

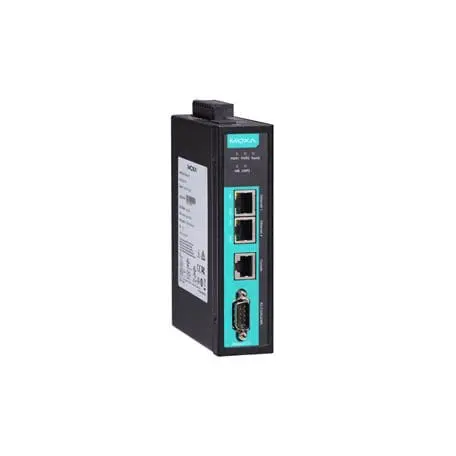

The MGate 5109 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP protocol conversion. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer built-in serial isolation. The MGate 5109 supports transparent mode to easily integrate Modbus TCP to Modbus RTU/ASCII networks or DNP3 TCP/UDP to DNP3 serial networks. The MGate 5109 also supports agent mode to exchange data between Modbus and DNP3 networks or to act as a data concentrator for multiple Modbus slaves or multiple DNP3 outstations. The rugged design is suitable for industrial applications such as power, oil and gas, and water and wastewater.
The MGate 5109 Series comes with an illustrated Quick Setup guide designed to make configuration easy. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps. The MGate 5109 Series also supports Auto Detection for DNP3 serial outstations, allowing the MGate 5109 to automatically acquire all outstation objects when configured as a DNP3 master.
The MGate 5109 gateways support Modbus and DNP3 Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave ID and register address, or incorrect command configuration. With Modbus/DNP3 Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.
The MGate 5109 gateways provide a web console and Telnet console for remote maintenance. Encryption communication functions, including HTTPS and SSH, are supported to provide better network security. In addition, firmware log functions are provided to record connection events and Modbus maintenance events. Users can review log data remotely through the web console.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
1-port Modbus-to-DNP3 gateway, 0 to 60°C operating temperature
| Management | |
|---|---|
| Authentication | |
| Encryption | |
| Console Port | |
| RS-232 | |
| RS-422 | |
| RS-485-2w | |
| Configuration Options | |
| Industrial Protocols | Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave, DNP3 Serial Master, DNP3 Serial Outstation |
| RS-485 Data Direction Control | |
| Terminator for RS-485 | |
| Isolation | |
| Functions Supported | |
| Max. No. of Client Connections | |
| Max. No. of Commands | |
| Mode | |
| Max. No. of Master Connections | |
| microSD Slot | |
| Input Voltage | |
| Input Current | |
| Power Connector | |
| Contact Current Rating | |
| Housing | |
| IP Rating | |
| Dimensions | |
| Weight | |
| Ambient Relative Humidity | |
| EMI | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Safety | |
| EMC |
