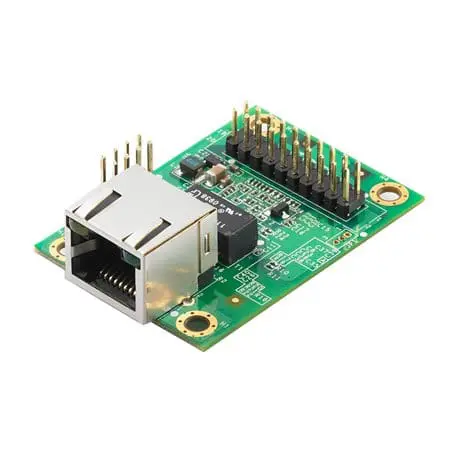

Embedded device server for TTL devices, up to 230.4Kbps, with RJ45, -40 to 85°C
Available on back-order
Moxa’s MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.
The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption among similar products. The MiiNe has the following features:
Designed for serial-to-Ethernet applications
Uses an Arm core
Uses Moxa’s own advanced UART technology
2 MB Flash and 4 MB SDRAM memory built in
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Embedded device server for TTL devices, up to 230.4Kbps, with RJ45, 0 to 55°C

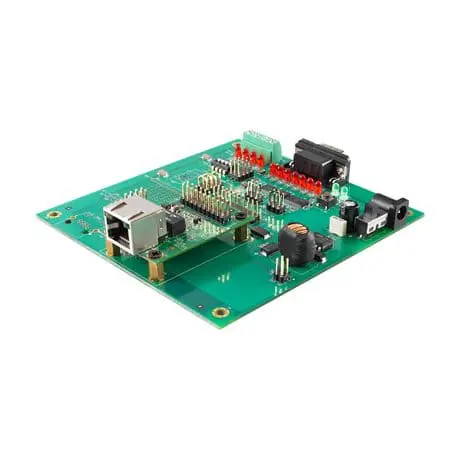

Starter kit for MiiNePort E3 Series, with module
Embedded device server for TTL devices, up to 921.6Kbps, with RJ45, 0 to 55°C
Embedded device server for TTL devices, up to 921.6Kbps, with RJ45, -40 to 85°C
Starter kit for the MiiNePort E3-H series, module included
| CPU | |
|---|---|
| Environmental Testing | |
| Flash | |
| SDRAM | |
| Magnetic Isolation Protection | |
| Configuration Options | |
| Management | |
| Windows Real COM Drivers | |
| No. of Ports | |
| Serial Standards | |
| Operation Modes | Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Ethernet Modem mode |
| TTL | • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND |
| NetEZ Functions | |
| Input Current | |
| Input Voltage | |
| Dimensions | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| EMC | |
| EMI | |
| EMS | |
| Green Product | |
| Time | |
| Standards | |
| Weight | |
| Warranty Period | |
| Details |
