8-port desktop device server, 2 10/100M ethernet, RS-232/422/485 DB9 male, 12~48 VDC, -40~75℃
Available on back-order
NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.
The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.
The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.
The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.
The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
8-port desktop device server, 2 10/100M ethernet, RS-232/422/485 DB9 male, w/ 1.5 kV isolation, 12~48 VDC, 0~60℃

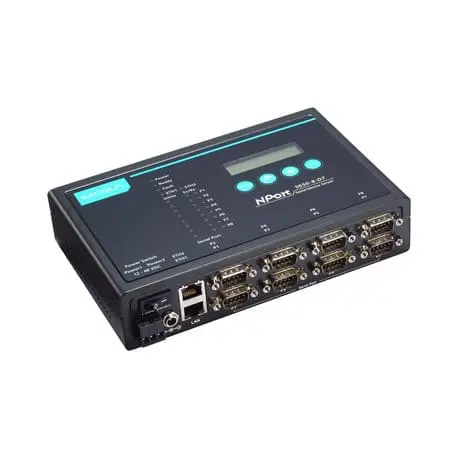

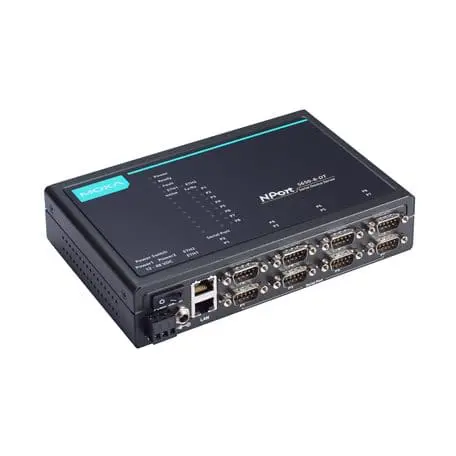

8-port desktop device server, 2 10/100M ethernet, RS-232/422/485 DB9 male, w/ 1.5 kV isolation, 12~48 VDC, -40~75℃

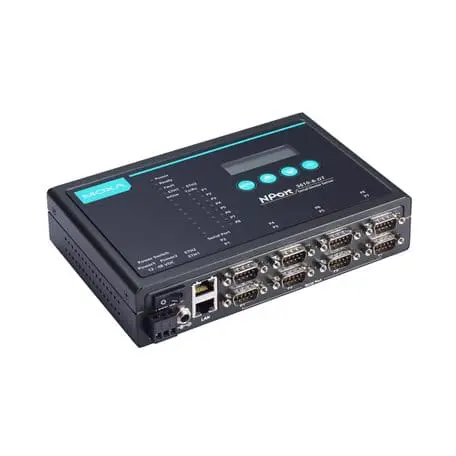

8-port desktop device server, 2 10/100M ethernet, RS-232/422/485 DB9 male, 12~48 VDC, 0~60℃

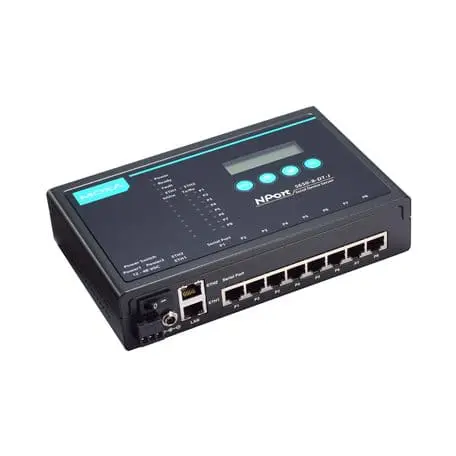

8-port desktop device server, 2 10/100M ethernet, RS-232/422/485 8-pin RJ45, 12~48 VDC, 0~60℃
8-port desktop device server, 2-port 10/100M ethernet, RS-232 DB9 male, 12~48 VDC, 0~60℃

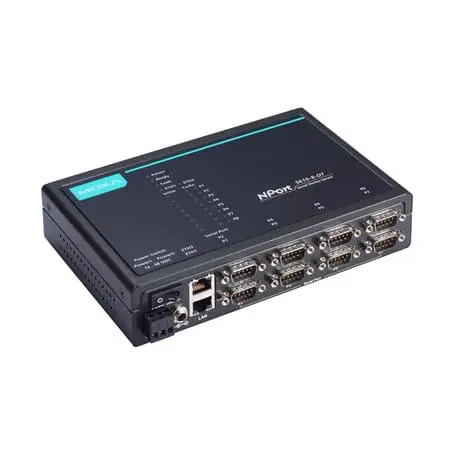

8 port desktop mode device server, RS-232 DB9 male, 12~48 VDC, -40~75°C

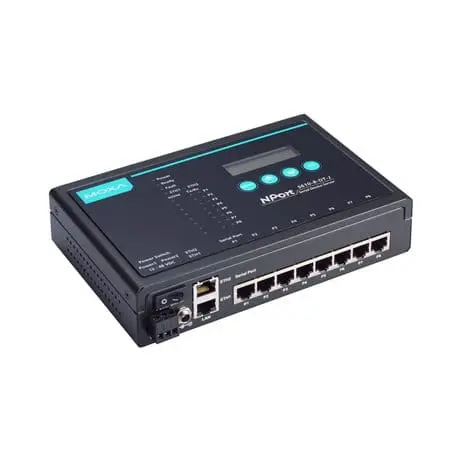

8-port desktop device server, 2-port 10/100M ethernet, RS-232 w/ RJ-45, 12~48 VDC, 0~60℃
| Configuration Options | Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility |
|---|---|
| Management | |
| Filter | |
| Authentication | |
| Encryption | |
| Connector | |
| RS-232 | |
| RS-422 | |
| RS-485-4w | |
| Input Current | |
| No. of Power Inputs | |
| Input Voltage | |
| Automatic Reboot Trigger | |
| Alert Tools | |
| Terminator for RS-485 | |
| RS-485 Data Direction Control | |
| Isolation | |
| Surge | |
| Console Port | |
| Dimensions (with ears) | |
| Dimensions (without ears) | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| EMC | |
| Green Product | |
| Time | |
| Standards | |
| Warranty Period | |
| Details | |
| Housing | |
| Weight |
