8 port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100M single mode fiber, SC connector, 100~240V, 0~60°C
Available on back-order
With the NPort® 5600 Rackmount Series, you not only protect your current hardware investment, but also allow for future network expansion by centralizing the management of your serial devices and distributing management hosts over the network.
Only basic configuration is needed with the NPort® 5600 to connect up to 16 serial devices to an Ethernet network.

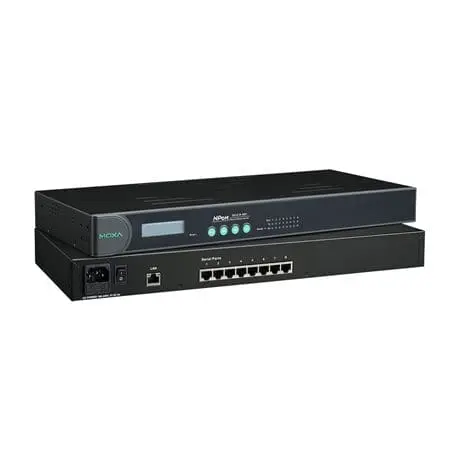

NPort® 5600 device servers come with Tx/Rx LEDs for the serial ports on the front panel, and 8 or 16 RJ45 serial port connectors on the rear panel. This makes the NPort® 5600 device servers suitable for a standard 19-inch rackmount, allowing you to simplify operational, maintenance, and administrative tasks.
Real COM/TTY drivers are provided to make the serial ports on the NPort® 5600 recognizable as Real COM ports by Windows, or Real TTY ports by Linux. In addition to supporting basic data transmission and reception, the NPort® drivers also support the RTS, CTS, DTR, DSR, and DCD control signals.
The System LED, serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The LEDs not only indicate current system and network status, but they also help field engineers monitor the status of attached serial devices.
When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible for all environments, the NPort® 5650-8/16 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
8 port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100~240V, 0~60℃
8 port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100~240V, -40~75℃
8 port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100M multi mode fiber, SC connector, 100~240V, 0~60°C
16-port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100~240V, 0~60℃
8 Port Device Server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 88~300 VDC, -40~85°C
16-port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100~240V, -40~75℃
16-port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100M single mode fiber, SC connector, 100~240V, 0~60℃
16-port device server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 100M multi mode fiber, SC connector, 100~240V, 0~60℃
16-port Device Server, 10/100M ethernet, RS-232/422/485 8-pin RJ45, 88~300 VDC, -40~85°C
8 port device server, 10/100M ethernet, RS-232/422 8-pin RJ45, 100~240 VAC, 0~60℃
| Configuration Options | |
|---|---|
| Management | |
| Filter | |
| Authentication | |
| Encryption | |
| Connector | |
| RS-232 | |
| RS-422 | |
| RS-485-4w | |
| Input Current | |
| Input Voltage | |
| Automatic Reboot Trigger | |
| Terminator for RS-485 | |
| RS-485 Data Direction Control | |
| Housing | |
| Installation | |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| EMC | |
| Time | |
| Standards | |
| Warranty Period | |
| Details | |
| Dimensions (with ears) | |
| Dimensions (without ears) | |
| Weight |
