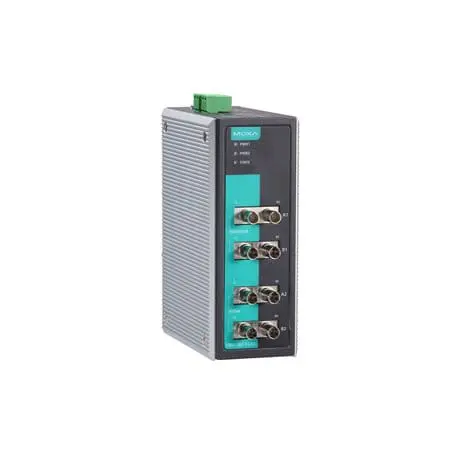

2-channel optical fiber bypass unit with 4 single-mode ports, ST, -20 to 70°C operating temperature
Available on back-order
Moxa’s OBU-102 fiber-optic bypass units add bypass relay functionality to any network node. In linear topologies, a single power outage or node failure can take out an entire chunk of the network, because communications to all the network nodes further down the line are also cut. With relay bypass, that node is bypassed in the event of a failure, and the rest of the network is unaffected.
The OBU-102 Series sits between a node and the network to add bypass relay functionality to any network switches that do not already support this important function. In normal operations, the OBU-102 Series acts as a gateway that forwards network traffic to and from the network switch. However, if power is lost, the OBU-102 will bypass the unpowered switch and simply pass network traffic to the next switch in the relay.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!

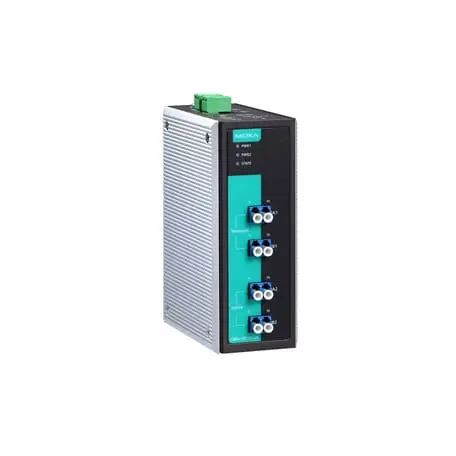

2-channel optical fiber bypass unit with 4 single-mode ports, LC, -20 to 70°C operating temperature
Available on back-order

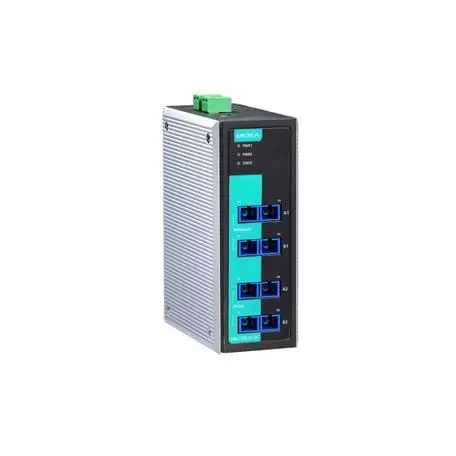

2-channel optical fiber bypass unit with 4 single-mode ports, SC, -20 to 70°C operating temperature
Available on back-order
Weight | 0.7000 kg |
---|---|
Optical Switching Time | |
Insertion Loss | |
Boot Delay Interval | |
Input Voltage | |
Housing | |
IP Rating | |
Dimensions | |
Operating Temperature | -20 to 70°C (-4 to 158°F) |
Ambient Relative Humidity | |
Safety | |
EMC | |
EMI | |
EMS | |
Freefall | |
Shock | |
Vibration | |
Warranty Period | |
Details |
NameTypeVersionRelease Date
Datasheet for OBU-102 Series
Download
1.3 MB
Datasheet
v1.0
Nov 12, 2018
Nov 12, 2018
