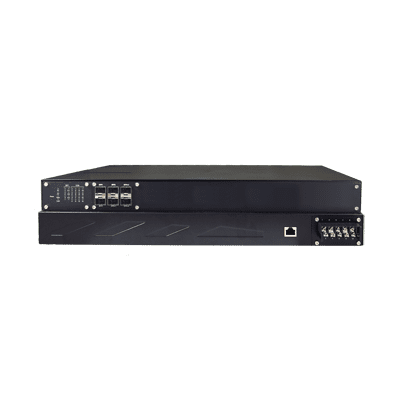

Industrial Protocol Gateway,10/100BASE-T(X) SFP slot, 100-240VAC/ 100-370VDC
Available on back-order
Product Description
The PG5900A Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different Ethernet-based protocols. The IEDs communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing.
The configuration carried out through a user friendly, Java- Based Windows Utility called eNode Designer, that allows configuring target platforms, set device properties and protocol data mapping. The configuration is completely dependent on the “eNode Module” which represents that device or application – but may include things such as changing the communication port settings and defining where data point information enters and leaves the eNode Designer system.
PG5900A Series embeds an additional layer of security, allowing the devices to be deployed in topologies that request data to flow through the Internet and preventing sensitive control and monitoring data to be readable from malicious activities. IPsec VPN encryption, configurable in both peer-to-peer and peer-to-side modes will make sure the data passing is encrypted through a strong 128, 192 or 256-bit AES encryption. OpenVPN-based applications can take advantage of Client/Server support on our device.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Industrial Protocol Gateway,10/100BASE-T(X) RJ45, 24-48 VDC
Available on back-order
Industrial Protocol Gateway,10/100BASE-T(X) SFP slot, 24-48 VDC
Available on back-order
Industrial Protocol Gateway,10/100BASE-T(X) RJ45, 100-240VAC/ 100-370VDC
Available on back-order
Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) – RJ45 version IEEE 802.3u 100Base-FX – SFP version |
---|---|
Network mode | |
Connector ports | |
Protocols | |
Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
Protocol setting | |
Supported Protocols | |
Protocol specifications | |
Rated Supply Voltage | Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series) |
Input Voltage Range | Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series) |
Input Current | |
Power Consumption | |
Connector | |
Power Redundancy | |
Reverse Polarity Protection | |
Housing | |
Dimension (W x H x D) | |
Weight | |
Installation | |
Reset Button | |
Operating Temperature | -40°C~80°C (-40°F~176°F) |
Storage Temperature | |
Ambient Relative Humidity |
Version | Name | Time | Size | Download |
---|---|---|---|---|
v1.1 | Datasheet EN | 2023-11-06 | 194.94 KB | Download |
