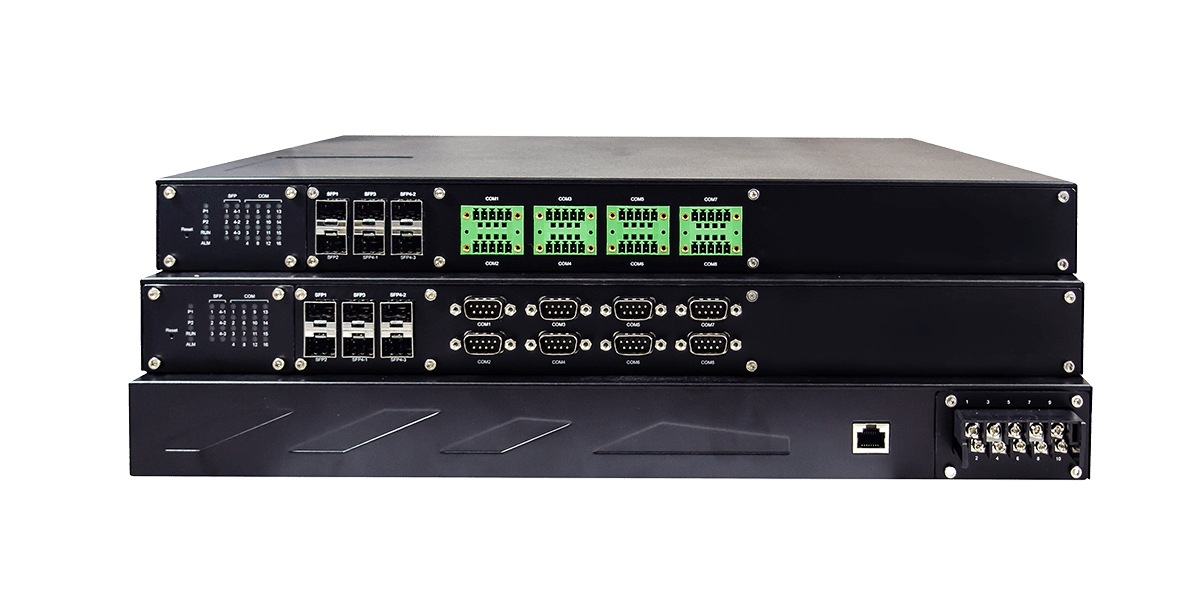

Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 24-48 VDC
Available on back-order
Product Description
The PG5908A Series is a highly reliable and fault tolerant Industrial Protocol Gateway. Its powerful architecture provides seamless conversion between the different protocols Ethernet or Serial based. The serial devices communicating on different protocols could be integrated into the system and extend its reach over the gateway’s redundant Ethernet. This device is designed to work in most demanding industries such as power substations, power generation, oil and gas, farming and manufacturing.
The configuration carried out through a user friendly, Java- Based Windows Utility called eNode Designer. It allows configuring target platforms, set device properties and protocol data point mapping. To do so, a project file representing the system should be created. This will include devices and the protocol applications running on them. The configuration is completely dependent on the “eNode Module” which represents that device or application – but may include things such as changing the communication port settings and defining where data point information enters and leaves the eNode Designer system.
PG5908A Series embeds an additional layer of security, allowing the devices to be deployed in topologies that request data to flow through the Internet and preventing sensitive control and monitoring data to be readable from malicious activities. IPsec VPN encryption, configurable in both peer-to-peer and peer-to-side modes will make sure the data passing is encrypted through a strong 128, 192 or 256-bit AES encryption.
Application
The protocol gateway’s embedded protocol stacks allow
– Seamless conversion
– Exception/error Management
– Unsolicited event management for the protocols requiring them (such as DNP3)
– High performance
– Low cost
The example shows how to Easily connect a Modbus Serial HMI, through ATOP’s Protocol Gateway to a DNP3.0 Ethernet Server IED. The host HMI has the role of a Modbus Serial Master while the end-device to be accessed is a DNP3.0 Ethernet Server.
ATOP’s protocol Gateway acts towards the HMI seamlessly as a Modbus Serial Slave, answering the poll commands or the write commands required by the Host by its virtual Modbus ID. Meanwhile, it acts as a DNP3.0 Ethernet Client with regard to the end-device whose DNP3.0 address is mapped to the virtual Modbus ID that the HMI is accessing.
Be careful! – all gateway functions listed in the datasheet refer to the “Gateway” role, and not which “host” or “slave” the gate
way is connected to. In this example, the SKU shown is “MBSS-DNEC” (Modbus Serial Slave to DNP3.0 Ethernet Client)
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 24-48 VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, DB9, 100-240VAC/ 100-370VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, Isolation, 24-48 VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP, Isolated, 100-240VAC/ 100-370VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 24-48 VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) SFP slot, TB5, 100-240VAC/ 100-370VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 24-48 VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, DB9, 100-240VAC/ 100-370VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, Isolation, 100-240VAC/100-370VDC
Available on back-order
Ind. 8 Port Protocol Gateway, 10/100BASE-T(X) RJ45, TB5, 24-48 VDC
Available on back-order
Speed | IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X) – RJ45 version IEEE 802.3u 100Base-FX – SFP version |
---|---|
Network mode | |
Connector ports | |
Connector | 10-Pin Terminal Block, D-Sub9 (DB models, supporting only 5-pin RS-232 mode) or 5.08mm 5-Pin Terminal block (TB Models) |
Ports | |
Mode | |
Serial Isolation | |
Baud Rate | |
Data Bits | |
Stop Bits | |
Flow Control | |
Protocols | |
Configuration | Atop Management Utility, Web UI, Telnet, Serial Console, ATOP eNode Designer |
Protocol setting | |
Supported Protocols | |
Protocol specifications | |
Rated Supply Voltage | Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series) |
Input Voltage Range | Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series) |
Input Current | |
Power Consumption | |
Power Redundancy | |
Reverse Polarity Protection | |
Housing | |
Dimension (W x H x D) | |
Weight | |
Installation | |
Reset Button | |
Operating Temperature | -40°C~80°C (-40°F~176°F) |
Storage Temperature | |
Ambient Relative Humidity |
