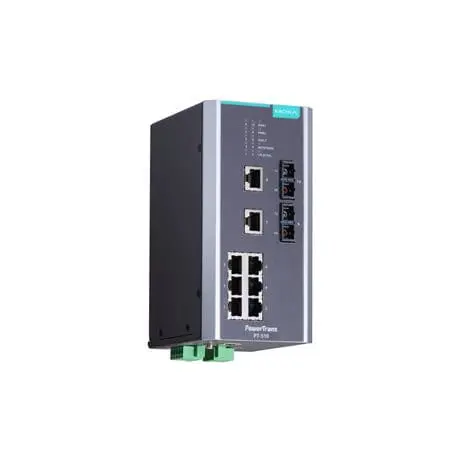

IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85C
Available on back-order
The PowerTrans PT-510 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The
PT-510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-510 makes network planning easy, and allows greater flexibility by letting you install up to 10 Fast Ethernet ports for power distribution applications.
Command line interface (CLI) for quickly configuring major managed functions
VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
EtherNet/IP and Modbus TCP industrial Ethernet protocols supported
Configurable by Web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
DHCP Option 82 for IP address assignment with different policies
IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
IEEE 802.3ad, LACP for optimum bandwidth utilization
Bandwidth management to prevent unpredictable network status
Multi-port mirroring for online debugging
Automatic warning by exception through email and relay output
RMON for proactive and efficient network monitoring
Automatic recovery of connected device’s IP addresses
Line-swap fast recovery
User passwords with multiple levels of security protect against unauthorized configuration
SSH/HTTPS is used to encrypt passwords and data
Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
RADIUS/TACACS+ allows you to manage passwords from a central location
802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
Secure switch ports so that only specific devices and/or MAC addresses can access the ports
Disable one or more ports to block network traffic
SNMPv3 provides encrypted authentication and access security
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (48 VDC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (48 VDC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 1 power supply (24 VDC), -40~85C

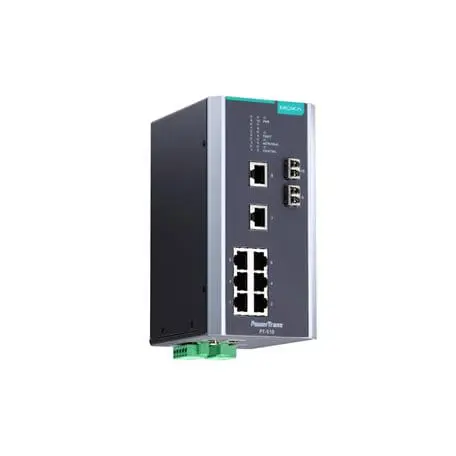

IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (48 VDC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with LC connectors, 1 power supply (24 VDC), -40~85C

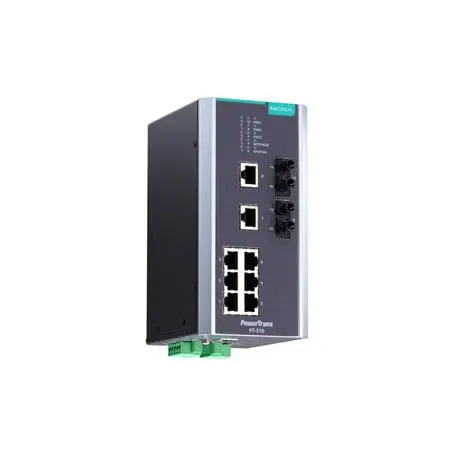

IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (48 VDC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 1 power supply (24 VDC), -40~85C
IEC 61850-3 managed Ethernet switch with 8 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 1 power supply (88-300VDC or 85-264VAC), -40~85C
| Filter | 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
|---|---|
| Industrial Protocols | |
| Management | |
| IGMP Groups | |
| MAC Table Size | |
| Console Port | |
| Alarm Contact Channels | |
| Connection | |
| Input Voltage | |
| Overload Current Protection | |
| Housing | |
| IP Rating | |
| Dimensions (without ears) | |
| Weight | |
| Installation | |
| Operating Temperature | '-40 to 85°C (-40 to 185°F) Note: Cold start requires minimum of 100 VAC @ -40°C |
| Ambient Relative Humidity | |
| EMI | |
| EMS | |
| Time | |
| Warranty Period | |
