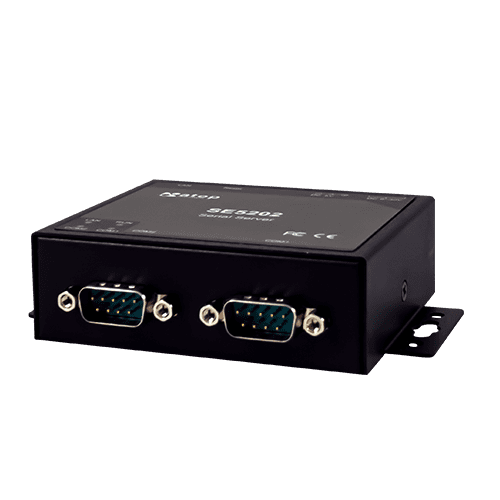

2-Port Serial Device Server, Industrial EMC, RS-232/422/485, Terminal block, SFP
Available on back-order
Despite Ethernet having become the new backbone standard of Industrial Automation, Serial devices still remain highly relevant today, with numerous devices installed on sites worldwide. So with ATOP’s SE5202 Series, you can transform any serial device into an Ethernet-capable one, allowing you to control and monitor your legacy serial devices via your LAN or WAN – or even over the internet.
With such connectivity, the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location is eliminated. And with such Ethernet-based connectivity, serial devices can be integrated into modern practices such as Industry 4.0 and IIoT, allowing you to extend their lifetime and avoid wholesale device upgrades in the near future.
Featuring 2 x software-selectable Serial Port and 1 x RJ45 Port or SFP Slot, the SE5202 Series is a simple-to-install device, with easy configurations options such as Telnet, Web browser, or other Windows utilities. And using the VirtualCOM software, Windows-based applications can access serial devices by mapping the virtual com ports to the SE5202 serial server series.
Encased in a rugged metal housing offering high EMC protection, the SE5202 Series is ideal for industrial and manufacturing automation applications, such as PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
2-Port Serial Device Server, Industrial EMC, RS-232/422/485, DB9(M)
2-Port Serial Device Server, Industrial EMC, RS-232/422/485, DB9(M), SFP
2-Port Serial Device Server, Industrial EMC, RS-232/422/485, 2kV Isolation, Terminal block
2-Port Serial Device Server, Industrial EMC, RS-232/422/485, Terminal block
| Ethernet Port | |
|---|---|
| Compliance | IEEE 802.3 for 10BASE-T IEEE 802.3u for 100BASE-T(X) and 100BASE-FX |
| Connector | 3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy, 9-Pin D-Sub9 connector(Male, -DB version) or 5-Pin Terminal block (-TB version) |
| Ports | |
| Mode | |
| Baud Rate | |
| Parity | |
| Data Bits | |
| Stop Bits | |
| Flow Control | |
| Input Voltage | |
| Power Consumption | |
| Power Redundancy | |
| Reverse Polarity Protection | |
| Dimension (W x H x D) | |
| Weight | |
| Installation | |
| Reset Button | |
| Operating Temperature | -40°C ~ 70°C (-4°F ~ 158°F) |
| Storage Temperature | |
| Ambient Relative Humidity | |
| Protocols | TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1/v2cv3 |
| Configuration | |
| VirtualCOM | |
| Link Modes - TCP Client | |
| Link Modes - TCP Server | |
| Link Modes - UDP |
