Supported Documents
| Name | Type | Version | Release Date |
|---|---|---|---|
|
|
Datasheet | v1.4 |
Mar 04, 2022 |
|
|
Manual | v1.0 |
Nov 29, 2018 |
802.11n Railway Trackside Out-door Dual Radio Access Point, coating, US band, IP68, -40 to 75°C
Available on back-order

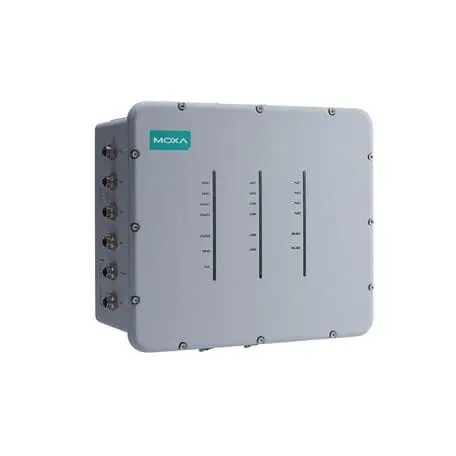

The TAP-323 trackside wireless unit is designed for train-to-ground wireless communication. The TAP-323 is a highly compact and rugged wireless unit that integrates two access points, a managed fiber switch, and a wide-range AC/DC power supply into one box. The IP68 housing allows the unit to withstand harsh weather conditions, and the M12 connectors make the unit shock and vibration resistant. The TAP-323 supports advanced controller-based Turbo Roaming technology for train-to-ground wireless applications such as communication-based train control (CBTC) and CCTV. The unit can supply power to up to 4 PoE devices while providing reliable LAN communication with Moxa’s Turbo Chain technology.
Controller-based L3 Turbo Roaming
Mobile IP support
2 dual-band radios: 2.4 GHz and 5 GHz
Turbo Chain support (100 ms recovery time)
WPA/WPA2 and 802.11i supported
IEEE 802.1X/RADIUS supported
Isolated 110 to 220 VDC/VAC power input
High transmission power, 400 mW (max)
Supplies power through 4 PoE ports
2 fiber SFP ports for backbone installation
Wide temperature (-40 to 75°C) range and IP68-rated housing
We understand that it can be difficult to find the right products for your needs. That’s why our dedicated customer support team is available to assist you in any way possible. Whether you need help selecting the best product for your application or more information on a particular device, our knowledgeable staff is here to provide you with the answers you need. Contact us today for more information about how we can help you get the products and support you need!
802.11n Railway Trackside Out-door Dual Radio Access Point, coating, EU band, IP68, -40 to 75°C
802.11n Railway Trackside Out-door Dual Radio Access Point, coating, JP band, IP68, -40 to 75°C
| Channel Bandwidth | |
|---|---|
| 1000BaseSFP Slots | |
| Management | |
| Security | |
| VLAN ID Range | |
| M12 Connector | |
| Filter | |
| Features | |
| Modulation Type | |
| Transmission Rate | |
| Transmitter Power for 802.11a | |
| Transmitter Power for 802.11b | 26±1.5 dBm @ 1 Mbps 26±1.5 dBm @ 2 Mbps 26±1.5 dBm @ 5.5 Mbps 25±1.5 dBm @ 11 Mbps |
| Transmitter Power for 802.11g | |
| Console Port | |
| Parity | |
| Input Current | AC input: 110 to 220 VAC, 50 to 60 Hz, 1.1 A (max.) DC input: 110 to 220 VDC, 1.1 A (max.) |
| Input Voltage | Redundant dual inputs, 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC) |
| Protection Type | |
| Housing | |
| IP Rating | |
| Dimensions | |
| Weight | |
| Installation | |
| Protection | |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity | |
| EMC | |
| EMI | |
| EMS | |
| Radio Frequency | |
| Time | |
| Standards | |
| Warranty Period |
