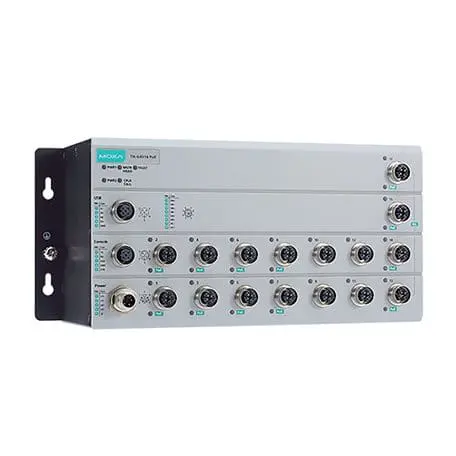

TN-G4516-8GPoE-2XGPoE-2XGTXBP-WV-T

Introduction

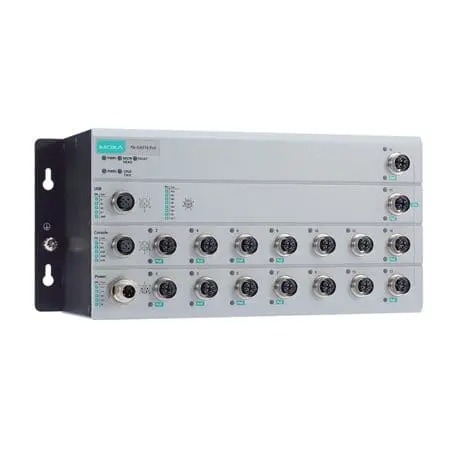

The ToughNet
TN-G4500 Series M12 managed Ethernet switches are designed for railway
applications, including rolling stock and wayside installations. These
switches are equipped with M12 and similar circular connectors to
ensure tight, robust connections, and guarantee reliable operation
in industrial environments where vibrations and shock are commonplace.
The TN-G4500 Series Ethernet switches provide 4 10G Ethernet M12 ports
with PoE functionality, 16 Gigabit Ethernet M12 ports, and 8 ports
with PoE functionality. These PoE switches are classified as power
source equipment (PSE), capable of providing up to 30 watts of power
per port to IEEE 802.3at/af-compliant powered devices (PDs), such
as IP cameras and wireless access points.

The TN-G4500 Series has M12 connectors that are tailor-made for push-pull
cables to facilitate quick installation and allow M12 rotary cables
to be utilized. The 24 to 110 VDC wide power input range and isolated
dual power inputs not only allow you to use the same type of power
source at different sites around the globe, but also increase the
reliability of your communications system. Furthermore, the -40 to
70°C wide operating temperature range allows deployment in harsh environments.
The TN-G4500 Series complies with the essential sections of the EN
50155 standard, covering operating temperature, power input voltage,
surge, ESD, vibration, power isolation, and features models with conformal
coating to ensure suitability for a variety of industrial applications.

Additional Features
and Benefits

• Provides up to 30 watts per PoE
  port with a total power budget of 120 watts per switch

• DHCP Option 82 for IP address assignment
  with different policies

• IGMP snooping and GMRP for filtering
  multicast traffic

• Supports the EtherNet/IP and Modbus/TCP
  industrial Ethernet protocols

• Port-based VLAN, IEEE 802.1Q VLAN,
  and GVRP to ease network planning

• QoS (IEEE 802.1p/1Q and ToS/DiffServ)
  allows real-time traffic classification and prioritization

• IEEE 802.3ad LACP for optimal bandwidth
  utilization

• SNMPv1/v2c/v3 for different levels
  of network management

• TACACS+, SNMPv3, IEEE 802.1X, HTTPS,
  and SSH to enhance network security

• RMON for efficient network monitoring
  and proactive capability

• Bandwidth management prevents unpredictable
  network conditions

• Port locking to only allow access
  to authorized MAC addresses

• Port mirroring for online debugging

• Automatic warning notifications
  through email

• Line-swap fast recovery

• LLDP for automatic topology discovery
  in network management software

• Configurable by web browser, Telnet/serial
  console, CLI, and Windows utility

• Loop protection to prevent network
  loops

• Wall mounting installation
