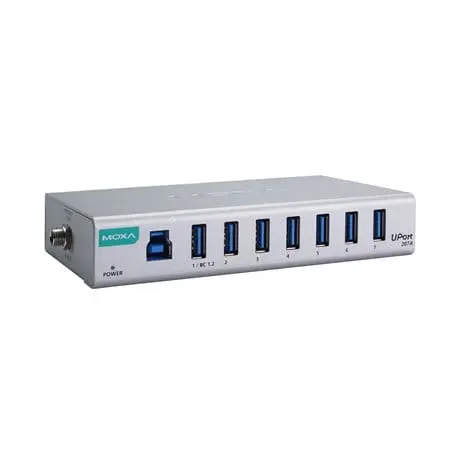

UPort 207A

Introduction

The UPort® 200A Series general-purpose USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port. The hubs are fully  compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function  properly. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

BC 1.2 Compatibility

The UPort® 200A Series hubs has BC 1.2 compatible on port 1, which would provide 1.5 A charging power to the mobile device/power bank that also supports BC 1.2. The UPort® 200A Series supports CDP, DCD and SCD type.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 200A Series USB hubs provide  ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
